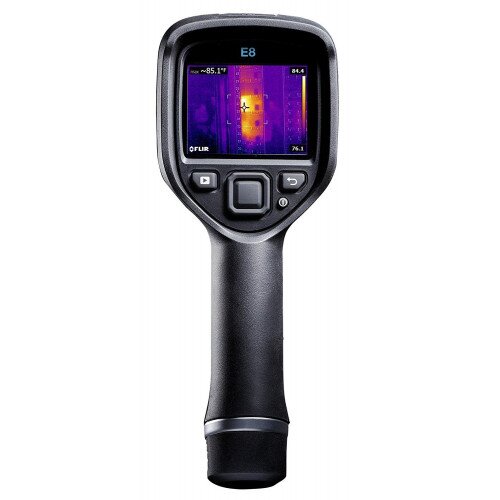

FLIR E8-XT WiFi Infrared Camera with Extended Temperature Range
FLIR E8-XT WiFi Infrared Camera with Extended Temperature Range Display Gallery Item 1
FLIR E8-XT WiFi Infrared Camera with Extended Temperature Range - 2 Display Gallery Item 2
FLIR E8-XT WiFi Infrared Camera with Extended Temperature Range - 3 Display Gallery Item 3
FLIR E8-XT WiFi Infrared Camera with Extended Temperature Range - 4 Display Gallery Item 4
FLIR E8-XT WiFi Infrared Camera with Extended Temperature Range - 5 Display Gallery Item 5
FLIR E8-XT WiFi Infrared Camera with Extended Temperature Range - 6 Display Gallery Item 6

Discover FLIR E8-XT WiFi Infrared Camera with Extended Temperature Range

By: FLIR

Model: 63908-0905

Sku: PWCGVBQUZI

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
  • Detector Type: Uncooled microbolometer
  • Field of view (FOV): 45° × 34°
  • IR Resolution: 320 x 240 pixels
  • Multi Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail
  • Thermal Sensitivity/NETD: (0.05°C (0.09°F) / (50 mK
  • Radio Spectrum: Standard: 802.11 b/g/n Frequency range: 2400–2480 MHz 5150–5260 MHz Max. output power: 15 dBm
  • EMC: WEEE 2012/19/EC, RoHs 2011/65/EC, C-Tick, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
  • Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity
  • Operating Temperature Range: –15°C to 50°C (+5°F to 122°F)
  • Shock: 25 g (IEC 60068-2-27)
  • Storage Temperature Range: –40°C to 70°C (–40°F to 158°F)
  • Vibration: 2 g (IEC 60068-2-6)
  • Color palettes: Black & white, iron, and rainbow
  • Focus: Focus free
  • Image Frequency: 9 Hz
  • Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
  • Minimum Focus Distance: 0.5 m (1.6 ft.)
  • Picture-in-Picture: IR area on visual image
  • Spatial resolution (IFOV): 2.6 mrad
  • Spectral Range: 7.5–13 µm
  • Isotherm: Above alarm, below alarm
  • Reflected apparent temperature correction: Automatic, based on input of reflected temperature
  • Spot Meter: Center spot; box with min./max.
  • Display: 3.0 in. 320 x 240 color LCD
  • Set-up Commands: Local adaptation of units, language, date and time formats
  • Charging system: Battery is charged inside the camera or in specific charger.
  • Charging Time: 2.5 hours to 90% capacity in camera. 2 hours in charger.
  • Power Management: Automatic shut-down
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

FLIR E8-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 76,800 (320 x 240) pixel infrared detector and expanded, -20°C to 550°C (-4°F to 1022°F) temperature range. FLIR MSX image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools Mobile app for sharing images and sending reports easily from any location.

SIMPLE, INTUITIVE CONTROLS

Automatic and focus-free, with clear on-screen navigation to measurement tools and settings

SHARE IMAGES AND FINDINGS EASILY

Download standard JPEGS, create reports, and share what you've found via a Wi-Fi connection to the FLIR Tools Mobile app

BUILT FOR YOUR TOUGH WORK ENVIRONMENT

Lightweight and well-balanced, the E8-XT has an IP54 enclosure and easily withstands a 2-meter drop test

In the Box

  • FLIR E8-XT WiFi Infrared Camera with Extended Temperature Range
  • Infrared camera
  • Hard transport case
  • Battery (inside camera)
  • USB cable
  • Power supply/charger with EU, UK, US and Australian plugs
  • Printed documentation
