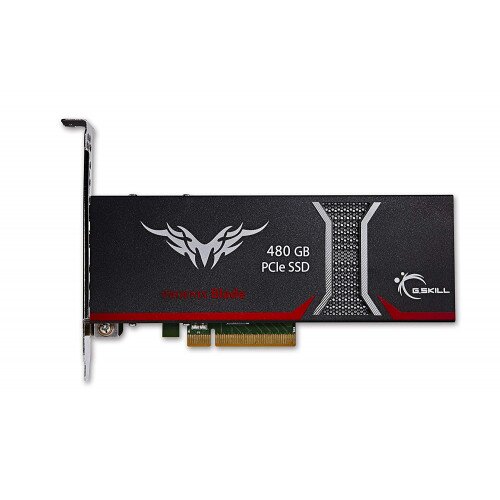

G.Skill Phoenix Blade PCIe SSD - 480GB - Shop Now and Save!

By: G.Skill

Model: FM-PCx8G2R4-480G

Sku: FSJDTPYHUT

Availability: Out of stock New

Availability: Out of stock

  • Form Factor: Half Height
  • Capacity: 960GB
  • Interface: PCI-Express 2.0 x8
  • Memory Components: MLC
  • Max Read Speed: 2,000MB/s (Iometer)
  • Max Write Speed: 2,000MB/s (Iometer)
  • Sequential Read: 1,650MB/s (CrystalDiskMark)
  • Sequential Write: 1,150MB/s (CrystalDiskMark)
  • 4KB Random Read: Up to 230,000 IOPS (Iometer)
  • 4KB Random Write: Up to 210,000 IOPS (Iometer)
  • Power Consumption (Active): Max Read Workload: 15W / Max Write Workload: 18W
  • Power Consumption (Idle): 8W
  • MTBF: 1,000,000 Hours
  • Operating Temperature: 0°C ~ 55°C
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Next Evolution of Extreme Storage

Designed with the latest flash-based solid state storage technology and integrating error correction and failure handling support, G.SKILL Phoenix Blade PCIe SSD is the perfect storage solution for extreme gaming, professional graphic design, industrial design, and HD video & audio content creation.

PCIe Gen 2.0 x8 Interface & x4 SSD Controllers in RAID0 Setup

Designed on a PCIe Gen 2.0 x8 interface and built with x4 SF-2281 SSD controllers in a RAID0 setup, improves read and write performance up to 4 times as fast as a typical SATA3 SSD. With a streamlined dataflow design, integrated with a massive 960GB array of MLC flash, the Phoenix Blade PCIe SSD eliminates bottlenecks in data transfer lanes, as well as reading and writing to and from the massive flash storage array.

Up to 2,000MB/s Extreme Read and Write Performance

With 960 gigabytes of storage capacity, the G.SKILL Phoenix Blade PCIe SSD is pushing the maximum limit of read and write speeds at up to 2,000MB per second, so large data transfers are faster than ever!

Up to 245K IOPS 4KB Random Write

G.SKILL Phoenix Blade PCIe SSD delivers an incredibly fast 245K IOPS! Experience the performance boost in data intensive processing, such as professional graphic/industrial design and HD multimedia content creation software applications.

Enhanced Data Protection

CRC data protection prevents data that is being transferred in and out of the drive from being corrupted. By implementing BCH ECC of up to 55 bits per sector and RAID-5-like data protection, flash cell errors and page/block failures are yesterday's news.

Extensive S.M.A.R.T. Attributes

Offering an extensive set of S.M.A.R.T. attributes allow users to monitor the drive's health, this feature allows the users to take preventative measures against possible data loss.

Extend SSD Lifetime with TRIM and SCSI UNMAP

TRIM and SCSI UNMAP support with major Windows OS versions help maintain consistent write performance, reduce flash deterioration, and most importantly, extend product lifetime.

In the Box

  • G.Skill Phoenix Blade PCIe SSD
