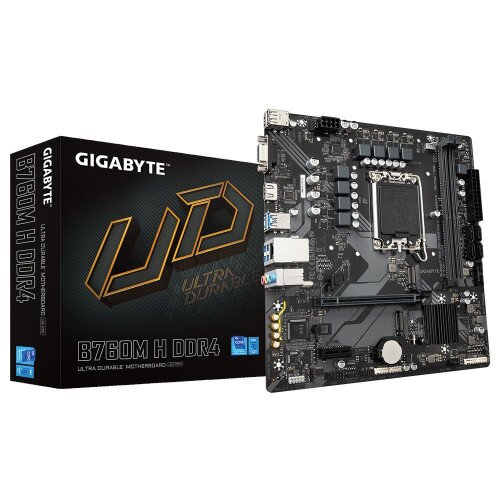

Gigabyte B760M H DDR4 (Rev. 1.0) Motherboard
Gigabyte B760M H DDR4 (Rev. 1.0) Motherboard Display Gallery Item 1
Gigabyte B760M H DDR4 (Rev. 1.0) Motherboard - 2 Display Gallery Item 2
Gigabyte B760M H DDR4 (Rev. 1.0) Motherboard - 3 Display Gallery Item 3
Gigabyte B760M H DDR4 (Rev. 1.0) Motherboard - 4 Display Gallery Item 4
Gigabyte B760M H DDR4 (Rev. 1.0) Motherboard - 5 Display Gallery Item 5
Gigabyte B760M H DDR4 (Rev. 1.0) Motherboard - 6 Display Gallery Item 6

Gigabyte B760M H DDR4 (Rev. 1.0) Motherboard - Shop Now and Save!

By: Gigabyte

Model: B760M H DDR4

Sku: CCQCUO7ZME

Be the first to review this product

Sign up for price alert

$130.99

Availability: In Stock In Stock

New

  • CPU: LGA1700 socket: Support for the 13th and 12thGeneration Intel Core, Pentium Gold and Celeron Processors, L3 cache varies with CPU
  • Chipset: Intel B760 Express Chipset
  • Memory: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules, 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
  • Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support: - D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, - HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
  • LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps)
  • Expansion Slots: CPU: - PCI Express x16 slot, supporting PCIe 4.0 and running at x16, Chipset: - PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface: CPU: - M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), Chipset: - M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), - 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB: Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header), - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors: 24-pin ATX main power connector, 8-pin ATX 12V power connector, CPU fan header, 2 x system fan headers, RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, front panel header, front panel audio header, S/PDIF Out header, USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), serial port header, Clear CMOS jumper
  • Back Panel Connectors: 2 x USB 2.0/1.1 ports, D-Sub port, HDMI port, 4 x USB 3.2 Gen 1 ports, RJ-45 port, 3 x audio jacks
  • I/O Controller: iTE I/O Controller Chip
  • H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
  • BIOS: 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features: Support for GIGABYTE Control Center (GCC), Support for Q-Flash
  • Operating System: Support for Windows 11 64-bit, Support for Windows 10 64-bit
Quantity:
  • Add to Wishlist
  • Add to Compare

6+1+1 Phases Hybrid Digital VRM Design

6+1+1 Phases Low RDS(on) MOSFETs, Premium Choke and Capacitors to improve transient response and minimize oscillation

PCIe 4.0 Design

GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

DDR4 XMP

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard.

PerfDrive

PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel Core processors.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

CONNECTIVITY

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

In the Box

  • Gigabyte B760M H DDR4 (Rev. 1.0) Motherboard
