GIGABYTE's entire line of X58-based motherboards are ready to support the new generation of Intel 32nm 6-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.

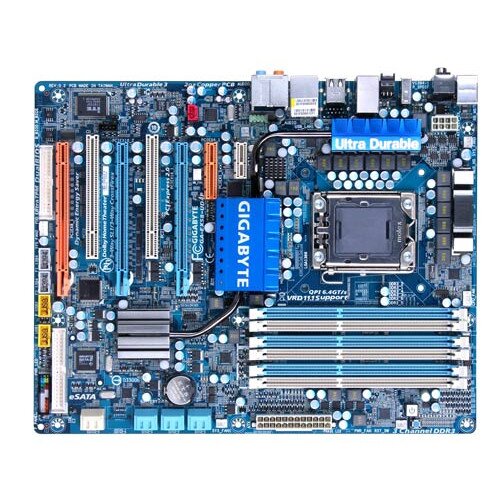

The EX58-UD4P is the latest high performance X58 Series motherboards of GIGABYTE, designed from the ground up to unleash the awesome power of Intel's new Core i7 processors. Equipped with a host of new features including the new QPI interface, 3 channel DDR3 support, 3 Way SLI and CrossFireX support, Ultra Durable 3 technology and the industry's most extensive range of overclocking features, the EX58-UD4P is bringing excitement back into the high performance motherboard industry.
The EX58-UD4P was designed specifically to take advantage of the raw power of the next generation Intel Core i7 processors and the Intel X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rate (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset.
The Intel(R) Core i7 processors also feature an integrated memory controller inside the processor die and support 192bit 3-channel DDR3 memory that delivers a 50% memory bandwidth enhancement and lower memory latency for incredibly fast memory access. Additionally, The EX58-UD4P features Intel(R) Turbo Boost Technology, which is able to power down idle processor cores and dynamically reroute the power to the active cores for significant performance boosts, and at the same time, maintain greater energy efficiency.
The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft(R), setting the standard for future Windows 7 certified motherboards.
Intel Core(TM) i7 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance. Core(TM) i7 processors also provide additional memory support including.
Dynamically reroutes power to improve performance For situations when all cores are not needed for a particular workload, Intel Turbo Boost Technology powers down the idle cores and dynamically reroutes the power to the active cores, boosting their performance without wasting power. This allows the active cores to achieve significant overclocks.
Flexible graphics capabilities - Up to 3 VGA cards are supported for either 3 way CrossFireX(TM) or 3 way SLI(TM) action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
GIGABYTE Dynamic Energy Saver(TM) 2 incorporates a host of intelligent features that, at the click of a button, utilize a proprietary hardware and software design to considerably enhance PC system energy efficiency, reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans.
