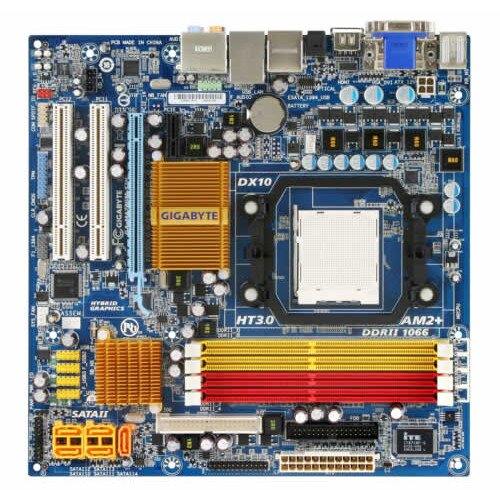

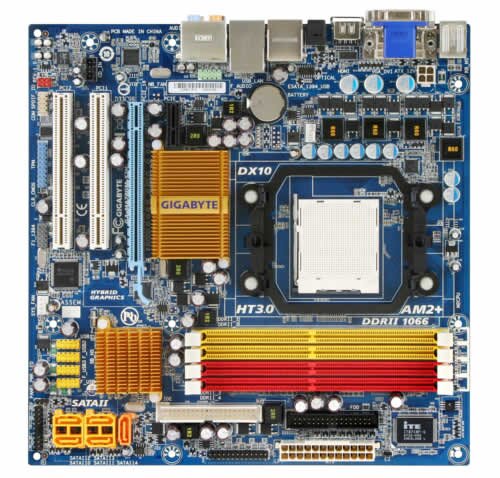

The GA-MA78GM-S2H is GIGABYTE's next generation, high performance platform based on the new AMD 780G Chipset and support for the new AMD Phenom quad-core processors, with the latest AM2+ platform support, integrated DDR2 1066 memory controller, HyperTransport 3.0 technology links and 128-bit Floating Point Units. In addition, GA-MA78GM-S2H features with two innovative S features- Safe, Smart technologies, further providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion's choice for AMD AM2+ platform!
This motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 PhenomII series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.
AMD Live Ready Requirement compliant.
Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new.
The leading-edge performance and unparallel technology of AMD AM2+ Phenom processors have built its strength on the well-known AMD64 framework which consisted next generation of HyperTransport 3.0 Technology, and integrated DDR2 1066 memory controller, and 128-bit Floating Point Units. The AMD Phenom processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform.
The AMD 780G Chipset is the system logic of the latest AM2+ (HyperTransport 3.0) platform from AMD that enables its next generation Phenom processors. The AMD 780G chipset integrated ATI Radeon HD 3200-based graphics architecture. This unique combination of Integrated Graphics Processor (IGP) creates a single motherboard featuring a world-class DX10, Shader Model 4.0 graphics, ATI Avivo Technology, and brand-new ATI Hybrid Graphics Technology and AMD UVD (Unified Video Decoder) Technology for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
Experience the advanced technology of DDR2 1066* memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCI-E 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
HDMI is able to provide up to 5Gb/s video transmitting bandwidth and multi-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. GA-MA78GM-S2H has obtained the latest HDMI 1.3* certification, able to support Full HD 1080p multi-media and HDCP (High-bandwidth Digital Content Protection) which allowing Blu-ray/ HD DVD and other protected contents playback.
