GIGABYTE's AMD motherboards are ready to support the new generation of AMD PhenomII X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.

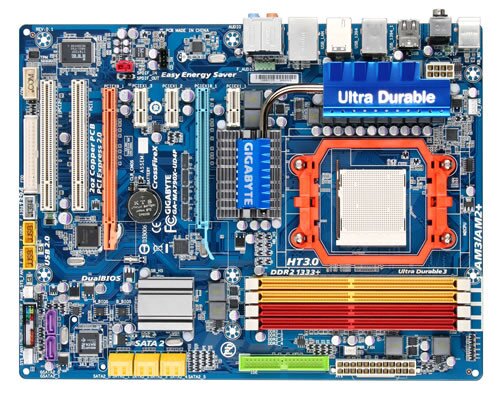

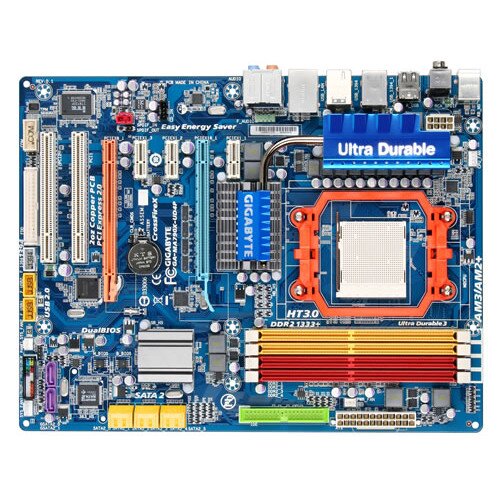

The GA-MA790X-UD4P introduces revolutionary GIGABYTE Ultra Durable 3 technology on latest AMD socket AM2+ platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 790X chipset, the GA-MA790X-UD4P supports new generation of 45nm AMD Phenom II series processors, integrated DDR2 memory controller, HyperTransport 3.0 technology links and dual PCI Express 2.0 graphics interfaces (running at x8 and x8) for ATI CrossFireX support. With the innovative GIGABYTE Easy Energy Saver technology, the MA790X-UD4P is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 PhenomII series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive utility further than it was previously possible.
The AMD OverDrive utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.
With support for latest ATI CrossFireX technology, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI-E connectivity, the GA-890GPA-UD3H allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible.
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
Doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing for greater margins for overclocking.
Delivering native support for DDR2 memory up to 1333MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
DualBIOS is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
