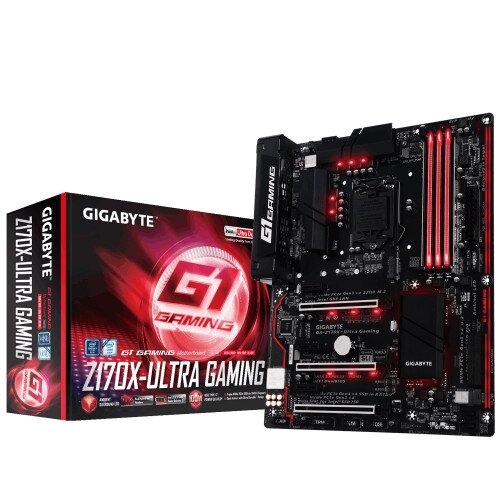

Powered by Intel's own Thunderbolt controller the new Thunderbolt 3 protocol, which is available over a USB Type-C connector on the back I/O of the GIGABYTE Z170X-Ultra Gaming, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as Mini DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.
Support for Mini DisplayPort 1.2 makes Thunderbolt 3 a must have for any enthusiast. The Z170X-Ultra Gaming is able to support a display in 4K resolution at 60 FPS. In addition, Thunderbolt 3 over USB Type-C has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 6 devices thanks to the Z170X-Ultra Gaming's USB Type-C port.
GIGABYTE implementing Thunderbolt 3 allows users to utilize all facets of this technology. GIGABYTE's unique design of incorporating a video input port, via Mini DisplayPort, allows users to take full advantage of their discrete NVIDIA or AMD Graphics Cards. By merging the performance of these discrete cards with Thunderbolt 3 users can now leverage the fast data transfer speeds and latest gaming technologies into a single Thunderbolt (USB Type-C ) cable.
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With a redesigned Ambient LED application, the user has complete control over the LEDs which surround the motherboard.
Many of today's modern computers feature water cooling to ensure that the CPU or graphics cards stay cool and quiet while they are put under heavy load. In order to provide the best support for water cooling solutions, GIGABYTE has equipped its Z170 motherboards with an additional water pump power header. This allows the user to have full control over two water pumps or fans. An additional benefit of these headers with GIGABYTE's motherboards is the option to choose between voltage calibration or PWM modes.
Redesigned to take full advantage of all the features that USB Type-C can support, GIGABYTE's new Z170 motherboards with Intel's USB 3.1 controller not only supports USB 2.0, 3.0, and 3.1, but also completely supports Power Delivery 2.0. This means users are able to get up to 100 watts through their Intel powered USB Type-C port. This opens the door for users looking to clean up their cable cutter and power or recharge their devices through this universal connector, the Type-C Port.
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 3866MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
