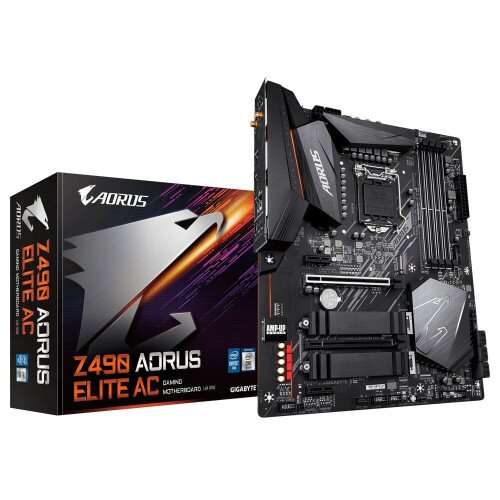

Gigabyte Z490 Aorus Elite AC Gaming Motherboard
Gigabyte Z490 Aorus Elite AC Gaming Motherboard Display Gallery Item 1
Gigabyte Z490 Aorus Elite AC Gaming Motherboard - 2 Display Gallery Item 2
Gigabyte Z490 Aorus Elite AC Gaming Motherboard - 3 Display Gallery Item 3

Gigabyte Z490 Aorus Elite AC Gaming Motherboard - Shop Now and Save!

By: Gigabyte

Model: Z490 AORUS ELITE AC

Sku: NUGO3MHM9N

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPUSupport for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 packageL3 cache varies with CPU
  • Chipset: Intel Z490 Express Chipset
  • Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Intel Core i9/i7 processors: Support for DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
  • Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support: HDMI port, supporting a maximum resolution of 4096x2160 30 Hz, Support for HDMI 1.4 version and HDCP 2.3.
  • Audio: Realtek ALC1200 codec, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
  • LAN: Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module: Intel Wi-Fi AC 9462: Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5, Support for 1x1 11ac wireless standard and up to 433 Mbps data rate
  • Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
  • USB: Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header, 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header), Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors: 24-pin ATX main power connector, 8-pin ATX 12V power connector, 4-pin ATX 12V power connector, 2 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, CPU fan header, water cooling CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, front panel header, front panel audio header, USB Type-C port, with USB 3.2 Gen 1 support, USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 2 x Thunderbolt add-in card connectors, Clear CMOS jumper, Q-Flash Plus button
  • Back Panel Connectors: 2 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 2 x SMA antenna connectors (1T1R), HDMI port, RJ-45 port, optical S/PDIF Out connector, 5 x audio jacks
  • I/O Controller: iTE I/O Controller Chip
  • BIOS: 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features
  • Operating System: Support for Windows 10 64-bit
  • H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Overheating warning, Fan fail warning, Fan speed control
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

VOID SPLIT

Shards of the Void; Borders Disappear Fusing different materials and surface textures with negative space to form a juxtaposition and showcase a stylistic effect where the boundaries between components are not clearly defined. It creates a multi-dimensional design that seemingly cuts through space and time.

DIRECT POWER DESIGN

Z490 AORUS ELITE AC motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 10-core CPU.

ADVANCED THERMAL SOLUTION

Z490 AORUS ELITE AC uses high performance thermal design with screwed mounted heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

UNPARALLELED PERFORMANCE

With the best quality components and GIGABYTE R&D design capability, the Z490 AORUS is a true beast among motherboards.

ULTRA DURABLE

GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z490 AORUS motherboard and reinforce every slot to make each of them solid and durable.

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. Z490 AORUS ELITE AC bundled several useful and intuitive software to help users to control every aspect of motherboard.

In the Box

  • Gigabyte Z490 Aorus Elite AC Gaming Motherboard
  • 4 x SATA Cables
  • G Connector
  • Wi-Fi Antenna
