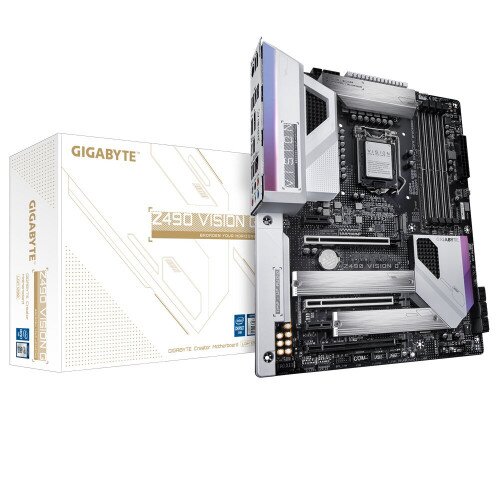

Gigabyte Z490 Vision G Motherboard - Shop Now and Save!

By: Gigabyte

Model: Z490 VISION G

Sku: 6XBWAXU6OL

Availability: Out of stock New

Availability: Out of stock

  • CPU: Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 packageL3 cache varies with CPU
  • Chipset: Intel Z490 Express Chipset
  • Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Intel Core i9/i7 processors: Support for DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
  • Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support: HDMI port, supporting a maximum resolution of 4096x2160 30 Hz, Support for HDMI 1.4 version and HDCP 2.3, DisplayPort, supporting a maximum resolution of 4096x2304 60 Hz, Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  • Audio: Realtek ALC1220-VB codec, The back panel line out jack supports DSD audio, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
  • LAN: Intel 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit)
  • Multi-Graphics Technology: Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies, Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
  • USB: Chipset: 3 x USB 3.2 Gen 2 ports on the back panel, 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header), 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header), 2 x USB 2.0/1.1 ports on the back panel, Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
  • I/O Controller: iTE I/O Controller Chip
  • H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Overheating warning, Fan fail warning, Fan speed control
  • BIOS: 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Operating System: Support for Windows 10 64-bit
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

APP CENTER

GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

EasyTune

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

BIOS

The GIGABYTE BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface. BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

In the Box

  • Gigabyte Z490 Vision G Motherboard
  • 4 x SATA Cables
