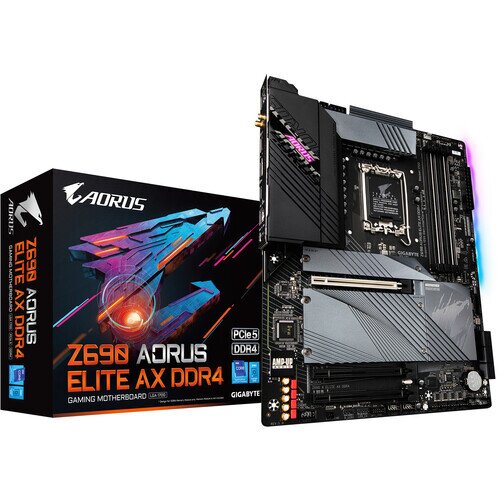

Gigabyte Z690 AORUS ELITE AX DDR4 (rev. 1.0) Motherboard
Gigabyte Z690 AORUS ELITE AX DDR4 (rev. 1.0) Motherboard Display Gallery Item 1
Gigabyte Z690 AORUS ELITE AX DDR4 (rev. 1.0) Motherboard - 2 Display Gallery Item 2
Gigabyte Z690 AORUS ELITE AX DDR4 (rev. 1.0) Motherboard - 3 Display Gallery Item 3
Gigabyte Z690 AORUS ELITE AX DDR4 (rev. 1.0) Motherboard - 4 Display Gallery Item 4
Gigabyte Z690 AORUS ELITE AX DDR4 (rev. 1.0) Motherboard - 5 Display Gallery Item 5

Discover Gigabyte Z690 AORUS ELITE AX DDR4 (rev. 1.0) Motherboard

By: Gigabyte

Model: Z690 A ELITE AX DDR4

Sku: 514TBPPAI5

Be the first to review this product

Sign up for price alert

$281.99

Availability: In Stock In Stock

New

  • CPU: LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors, L3 cache varies with CPU
  • Chipset: Intel Z690 Express Chipset
  • Memory: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules, 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
  • Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3, ** Support native HDMI 2.1 TMDS compatible ports, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, * Support for DisplayPort 1.2 version and HDCP 2.3, (Graphics specifications may vary depending on CPU support.)
  • Audio Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio: 2-channel analog output, Support for S/PDIF Out, 7.1-channel digital signals, * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
  • LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module: Intel Wi-Fi 6 AX201: WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5.2, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16), * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot, (The PCIEX16 slot conforms to PCI Express 5.0 standard), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2), (The PCIEX4 slots conform to PCI Express 3.0 standard.)
  • Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
  • Storage Interface: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB), 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB), 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10, * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors, Intel Optane Memory Ready, * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Quantity:
  • Add to Wishlist
  • Add to Compare

UNPARALLELED PERFORMANCE

With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

ADVANCED THERMAL SOLUTION

GIGABYTE Z690 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.

NEXT GENERATION CONNECTIVITY

GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.

DEFINITIVE AESTHETICS

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Key Feature

  • Supports 12th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 16+1+2 Digital VRM Design with 70A Power Stage* and Tantalum Polymer Capacitor
  • Shielded Memory Routing to Avoid Interference
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Onboard WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
  • Fast 2.5GbE LAN with Bandwidth Management
  • 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

In the Box

  • Gigabyte Z690 AORUS ELITE AX DDR4 (rev. 1.0) Motherboard
  • Wi-Fi Antenna
  • 2 x SATA Cables
  • M.2 Screw Package
  • G Connector
