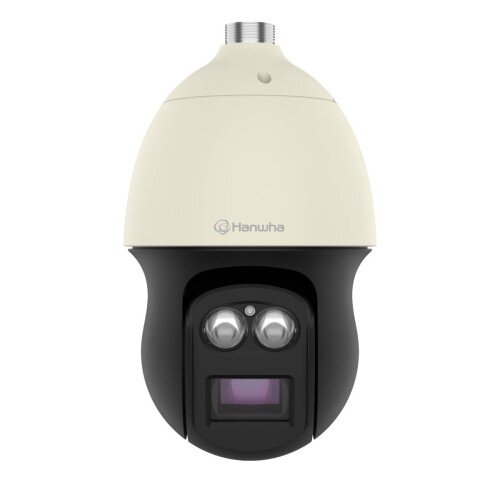

Hanwha Techwin XNP-6320RH 2M H.265 32x IR PTZ Camera
Hanwha Techwin XNP-6320RH 2M H.265 32x IR PTZ Camera Display Gallery Item 1
Hanwha Techwin XNP-6320RH 2M H.265 32x IR PTZ Camera - 2 Display Gallery Item 2
Hanwha Techwin XNP-6320RH 2M H.265 32x IR PTZ Camera - 3 Display Gallery Item 3
Hanwha Techwin XNP-6320RH 2M H.265 32x IR PTZ Camera - 4 Display Gallery Item 4

Hanwha Techwin XNP-6320RH 2M H.265 32x IR PTZ Camera Price Worldwide

By: Hanwha Techwin

Model: XNP-6320RH

Sku: QX3A98M7TX

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Max. 2megapixel (1920 x 1080) resolution
  • 4.44 ~ 142.6mm (Optical 32x) lens
  • Max. IR viewable length : 200m (656ft)
  • Day & Night (ICR), WDR (150dB), DIS (Built-in gyro sensor)
  • Intelligent Video / Audio Analytics, Shock detection
  • Azimuth display (Cardinal & intermediate directions)
  • Multiple streaming, WiseStream II support
  • H.265, H.264, MJPEG codec support
  • MicroSD / SDHC / SDXC memory 2 slots (Up to 512 GB)
  • IP66, IK10
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Video

  • Imaging Device: 1/2.8" 2MP CMOS
  • Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
  • Max. Framerate: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz), MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  • Min. Illumination: Color: 0.05Lux(F1.6, 1/30sec), BW: 0Lux(IR LED On)
  • Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation

Lens

  • Focal Length (Zoom Ratio): 4.44~142.6mm(32x) zoom
  • Max. Aperture Ratio: F1.6(Wide)~F4.4(Tele)
  • Angular Field of View: H: 61.8°(Wide)~2.19°(Tele) / V: 36.2°(Wide)~1.24°(Tele)
  • Min. Object Distance: Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft)
  • Focus Control: Oneshot AF
  • Lens Type: DC auto iris

Pan / Tilt / Rotate

  • Pan Range: 360° Endless
  • Pan Speed: Preset: 400°/sec, Manual: 0.024°/sec~250°/sec
  • Tilt Range: 95°(-5°~90°)
  • Tilt Speed: Preset: 250°/sec, Manual: 0.024°/sec~250°/sec
  • Sequence: Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
  • Preset Accuracy: 0.2°

Operational

  • Camera Title: Displayed up to 85 characters
  • Direction Indicator: Support
  • Day & Night: Auto(ICR)
  • Backlight Compensation: BLC, HLC, WDR, SSDR
  • Wide Dynamic Range: 150dB
  • Digital Noise Reduction: SSNRⅤ
  • Digital Image Stabilization: Support(built-in gyro sensor)
  • Defog: Support
  • Motion Detection: 8ea, 8point polygonal zones
  • Privacy Masking: 32ea, rectangular Support, Color: Grey/Green/Red/Blue/Black/White, Mosaic
  • Gain Control: Low / Middle / High
  • White Balance: ATW / AWC / Manual / Indoor / Outdoor
  • Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec)
  • Video Rotation: Flip, Mirror
  • Analytics:Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
  • Serial Interface: RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
  • Alarm I/O: Input 4ea / Output 2ea
  • Alarm Triggers: Analytics, Network disconnect, Alarm input
  • Alarm Events: File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, PTZ Preset
  • Audio In: Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  • Audio Out: Line out, Max.output level: 1Vrms
  • IR Viewable Length: 200m(656.17ft)
  • Auto Tracking Support

Network

  • Ethernet: RJ-45(10/100BASE-T), SFP(Optional)
  • Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
  • Audio Compression: G.711 u-law /G.726 Selectable, G.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC: 48Kbps at 16KHz
  • Smart Codec: Manual(5ea area), WiseStreamⅡ
  • Bitrate Control: H.264/H.265: CBR or VBR MJPEG: VBR
  • Streaming: Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
  • Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP
  • Security: HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access log, 802.1X Authentication(EAP-TLS, EAP-LEAP)
  • Application Programming Interface: ONVIF Profile S/G, SUNAPI(HTTP API), Wisenet open platform

General

  • Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
  • Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
  • Memory 1024MB RAM, 256MB Flash

Environmental & Electrical

  • Operating Temperature / Humidity: 24VAC : -50°C~+55°C (-58°F ~ +131°F), Less than 95% RH-Non-Condensing, HPoE : -40°C~+55°C (-40°F ~ +131°F) /Less than 95% RH-Non-Condensing, * Start up should be done at above -35°C FAN/Heater included
  • Storage Temperature / Humidity: -50°C~+60°C (-58°F~+140°F) / Less than 90% RH
  • Certification: IP66, IK10
  • Input Voltage: 24VAC, HPoE(IEEE802.3bt, Class7)
  • Power Consumption: 24VAC: Max. 83W (typical : 30W) HPoE : Max. 51W (typical : 30W)

Mechanical

  • Color / Material: Body: Ivory / Aluminum+Plastic, Head: Black / Aluminum+Plastic

DORI (EN62676-4 standard)

  • Detect (25PPM/ 8PPF): Wide: 64.2m(210.5ft) / Tele: 2009.0m(6591.3ft)
  • Observe (63PPM/ 19PPF): Wide: 25.7m(84.2ft) / Tele: 803.6m(2636.5ft)
  • Recognize (125PPM/ 38PPF): Wide: 12.8m(42.1ft) / Tele: 401.8m(1318.3ft)
  • Identify (250PPM/ 76PPF) Wide: 6.4m(21.1ft) / Tele: 200.9m(659.1ft)

In the Box

  • Hanwha Techwin XNP-6320RH 2M H.265 32x IR PTZ Camera
