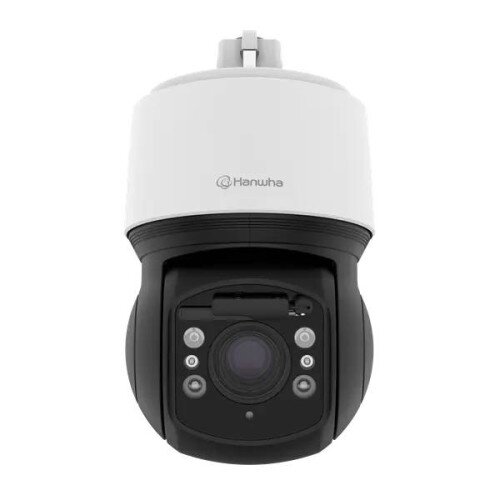

Discover Hanwha Techwin XNP-C8303RW 6MP 30x AI IR Wiper PTZ PLUS Camera

• Imaging Device
• Size: 1/2.8"
• Type: CMOS
• Resolution: 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate
• H.265/H.264: 30fps/25fps (60Hz/50Hz)
• MJPEG: 30fps (@6MP Max. 5fps)
• Min. Illumination (Lux)
• Color (1/30sec, 30IRE): 0.1
• BW (1/30sec, 30IRE): 0.01
• Focal Length (mm): 5~150
• Zoom Ratio
• Optical: 30x
• Digital: 32x
• Max Aperture Ratio (F number)
• Wide: 1.6
• Tele: 4.56
• Angular Field of View
• Horizontal: 57.42°~2.19°
• Vertical: 33.54°~1.25°
• Min. Object Distance: 3m (9.84ft)
• Focus Control: Oneshot AF, Focus save
• Lens Type: DC auto iris
• Pan / Tilt / Rotate Range
• Pan: 360° Endless
• Tilt: 90°~-20°
• Pan Speed
• Preset: Max. 500°/sec
• Manual: 0.024°/sec~250°/sec
• Tilt Speed
• Preset: Max. 350°/sec
• Manual: 0.024°/sec~250°/sec
• Sequence: Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy: Up to ±0.1°, Pan/Tilt correction
• Direction Indicator: Support
• Day & Night: Auto(ICR)
• Backlight Compensation: BLC, HLC, WDR, SSDR
• Wide Dynamic Range (dB): 120
• Digital Noise Reduction: WiseNRⅡ(Based on AI engine), SSNRⅤ
• Digital Image Stabilization: Support (built-in gyro sensor)
• Defog: Support
• Motion Detection
• Quantity: 8ea
• Shape: 8point Polygonal zones
• Privacy Masking
• Quantity: 32ea
• Shape: 4point Quadrangle zones
• Color / Option: Gray, Green, Red, Blue, Black, White, Mosaic
• Gain Control: Off, Max gain, Manual
• White Balance: ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
• Electronic Shutter
• Mode: Minimum, Maximum, Anti flicker, Prefer shutter control (Based on AI engine)
• Speed Range: 2~1/12,000sec
• Video Rotation: Flip&Mirror
• Alarm Interface: Support alarm I/O via optional I/O box
• Alarm Triggers: Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
• Alarm Events When Alarm Trigger Occurred: File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
• Audio In: Support via optional I/O box
• Audio Out: Support via optional I/O box
• Light Type: IR LED
• Light Viewable Length: IR Wise IR 200m (656.17ft)
• IR Wavelength: 850nm
• Water Removal: Support (with Wiper, Lens heater)
• Auto Tracking: Support, Object auto tracking(Person/Vehicle), Target lock tracking
• Classified Object Type: Person, Face, Vehicle, License plate
• Attributes - Vehicle: Type(car, bus, truck, motorcycle, bicycle)
• Thumbnail: DetectionShot
• Analytics Events
• Based on AI Engine: Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
• Normal: Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
• Ethernet: Metal shielded RJ-45(10/100BASE-T)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec: Manual, WiseStreamⅢ
• Bitrate Control: H.265/H.264: CBR or VBR, MJPEG: VBR
• Streaming
• Unicast: Up to 20 users
• Multicast: Support
• Multiple Streaming: Up to 10 profiles
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205
• Application Programming Interface
• ONVIF: S, G, T, M
• Others: SUNAPI(HTTP API), Hanwha Vision Open Platform
• Direct Cloud Connection: Support
• OS / Firmware Protect: Encrypted firmware, Secure boot, Signed firmware
• User authentication: Digest authentication, Prevent brute-force attack
• Network authentication: IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication: HTTPS, WSS(WebSocket Secure), SRTP
• Access Control: IP-based access control
• Data Protect: Encryption credentials, Encrypt compress for live recording file export
• Audit: Access / System / Event Log management
• Device ID: Device certificate(Hanwha Vision Root CA)
• Secure Storage: TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
• Security Certificate: TPM 2.0 with FIPS 140-2 level2
• Memory
• RAM: 4GB
• Flash: 512MB
• Edge Storage: Micro SD/SDHC/SDXC, Max. 512GB x 2slot(Total 1TB)
• Operating Condition
• Temperature: -40°C~+55°C(-40°F~+131°F)
• Humidity: 0~100% RH(condensing)
• Others: +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent
• Storage Condition
• Temperature: -50°C~+60°C(-58°F~+140°F)
• Humidity: 0~90% RH(non-condensing)
• EPA(Effective Projected Area): 0.048㎡
• Input Voltage: PoE++(IEEE802.3bt type3, Class6)
• Power Consumption: PoE, Max. 46W, Typical 26W
• Material: Aluminum, PC(Polycarbonate)
• RAL Code: RAL9003, RAL9005
• Product Dimensions: o184.9x318.8mm(7.28x12.55")
• Product Weight: 5,600g(12.34lb)
• EMC: FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
• Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
• Environment: IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X
• DORI (EN62676-4 standard)
• Detect (25PPM/8PPF): Wide 121.5m(398.7ft), Tele 3482.3m(11424.9ft)
• Observe (63PPM/19PPF): Wide 48.6m(159.5ft), Tele 1392.9m(4570.0ft)
• Recognize (125PPM/38PPF): Wide 24.3m(79.7ft), Tele 696.5m(2285.0ft)
• Identify (250PPM/76PPF): Wide 12.2m(39.9ft), Tele 348.2m(1142.5ft)

In the Box

• Hanwha Techwin XNP-C8303RW 6MP 30x AI IR Wiper PTZ PLUS Camera
