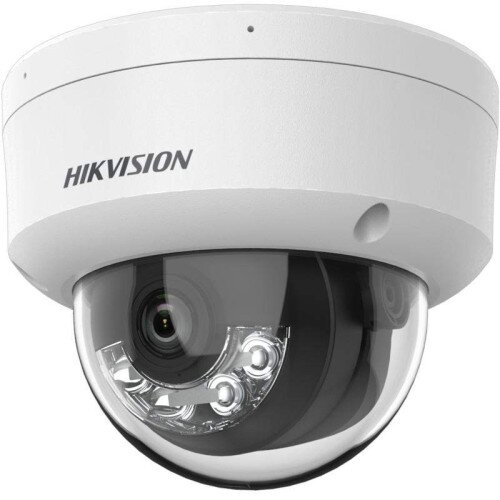

Hikvision DS-2CD1143G2-LIUF (4mm) 4 MP Smart Hybrid Light Fixed Dome Network Camera
Hikvision DS-2CD1143G2-LIUF (4mm) 4 MP Smart Hybrid Light Fixed Dome Network Camera Display Gallery Item 1
Hikvision DS-2CD1143G2-LIUF (4mm) 4 MP Smart Hybrid Light Fixed Dome Network Camera - 2 Display Gallery Item 2
Hikvision DS-2CD1143G2-LIUF (4mm) 4 MP Smart Hybrid Light Fixed Dome Network Camera - 3 Display Gallery Item 3

Discover Hikvision DS-2CD1143G2-LIUF (4mm) 4 MP Smart Hybrid Light Fixed Dome Network Camera

By: Hikvision

Model: DS-2CD1143G2-LIUF(4mm)

Sku: V0DGQ4SA9O

Be the first to review this product

Sign up for price alert

$137.99

Availability: In Stock In Stock

New

  • Camera: Image Sensor: 1/3" Progressive Scan CMOS / Max. Resolution: 2560 × 1440 / Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR / Shutter Time: 1/3 s to 1/100,000 s / Day & Night: IR cut filter / Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Lens Type: Fixed focal lens: 4 mm / Focal Length & FOV: 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° / Lens Mount: M12 / Iris Type: Fixed / Aperture: F1.6
  • DORI: 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
  • Illuminator: Supplement Light Type: IR,White Light / Supplement Light Range: Up to 30 m / Smart Supplement Light: Yes / IR Wavelength: 850 nm
  • Video: Main Stream: 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) / Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) / Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG / Video Bit Rate: 32 Kbps to 8 Mbps / H.264 Type: Baseline Profile, Main Profile, High Profile / H.265 Type: Main Profile / Bit Rate Control: CBR,VBR / Region of Interest (ROI): 1 fixed region for main stream
  • Audio: Audio Type: Mono sound / Environment Noise Filtering: Yes / Audio Sampling Rate: 8 kHz/16 kHz / Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC / Audio Bit Rate: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Network: Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) / Simultaneous Live View: Up to 6 channels / API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK / Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP / User/Host: Up to 32 users 3 user levels: administrator, operator, and user / Client: iVMS-4200,Hik-Connect / Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
  • Image: Wide Dynamic Range (WDR): 120 dB / SNR: ≥ 52 dB / Day/Night Switch: Day,Night,Auto,Schedule / Image Enhancement: BLC,HLC,3D DNR / Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser / Privacy Mask: 4 programmable polygon privacy masks
  • Interface: Ethernet Interface: RJ45 10 M/100 M self-adaptive Ethernet port / On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB / Built-in Microphone:Yes / Reset Key: -F: Yes
  • Event: Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception / Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
  • General: Power: 12 VDC ± 25%, 0.5 A, max. 6 W,O5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W / Material: Metal & Plastic / Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) / Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: English, Ukrainian / General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email
  • Approval: EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 / Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 / Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 / Protection: IP67: IEC 60529-2013,IK08: IEC 62262:2002
Quantity:
  • Add to Wishlist
  • Add to Compare

High quality imaging with 4 MP resolution

Support Human and Vehicle Detection

Smart Hybrid Light: advanced technology with long range

Built-in microphone for real-time audio security

Efficient H.265+ compression technology

Support on-board storage up to 512 GB (SD card slot) (Optional)

Water and dust resistant (IP67) and vandal resistant (IK08)

In the Box

  • Hikvision DS-2CD1143G2-LIUF (4mm) 4 MP Smart Hybrid Light Fixed Dome Network Camera
