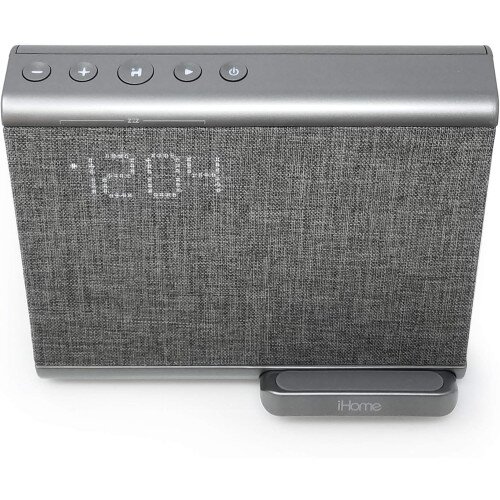

Thank you for purchasing the iHome iBTW39. This product is designed to provide high quality wireless sound for your Bluetooth audio device. It will also wirelessly charge compatible devices. For more features, download the iHome Enhance app to extend the possibilities of this product.
This instruction booklet explains the basic operation and care of the unit. Please read it carefully and keep for future reference.
Connect the included AC adapter to the DC jack located on the back of the unit and connect the other end to a working wall outlet not controlled by a light switch.
A CR2450 3V battery is included for battery backup. See page 11 for more on installing and replacing backup batteries.
Pairing establishes a unique communication connection between your Bluetooth device and the speaker. Once paired, you will be able to stream audio wirelessly to your Bluetooth Rechargeable Speaker. When AC power is connected, and the Button OR or Bluetooth Button is pressed, the iBTW39 will attempt to autolink to a previously paired device.
“bt” and the Bluetooth indicator appear on the display when the unit is on and your device is connected. Press the Button on the unit to play or pause audio from your linked Bluetooth device.
Press the – or + Buttons to adjust the volume on the unit
When done listening, press the Button to turn the unit Off
This unit will wirelessly charge Qi compatible wireless charging phones. PMA wireless charging system is not supported.
CAUTION: Remove metal protective or magnetic case from phone before charging. When charging phone, do not place magnetic-striped or other metal objects on the charger. Doing so could damage the object or this unit. Qi compatible phones with metallic looking finishes will charge normally.
Place Qi compatible device on charging rest with front facing you. Check the green wireless charging indicator LED below the charging rest.
Rapid blinking green LED: Device is not charging properly. Reposition device.
Slow blinking green LED: Device is charging properly. Solid green LED: Device is charged (some devices do not support this feature).
Connect the standard size end of a USB cable (not included) to the USB Port on back of the unit and connect the other end to the charging port on your device.
Monitor the charging on your device. Some devices use a proprietary charging method and will not charge using the USB Port. If this happens, you must charge your device using the charger that came with it.
The unit comes with 1 CR2450 back-up battery installed to provide continuous alarm operation and clock settings in the event of a power failure. Remove the battery pull tab before use. When the Battery Low Red LED located in the middle of the display is flashing, it is time to replace the back-up battery. The battery compartment is located on the bottom of the unit.
Please make sure the AC adaptor is connected, otherwise all settings may be lost during battery replacement.
Use a Phillips screwdriver to remove the battery compartment cover located on the bottom of the unit.
Remove exhausted battery. Insert 1 CR2450 battery checking that the + side is facing you. Replace the compartment door. Do not over tighten.
