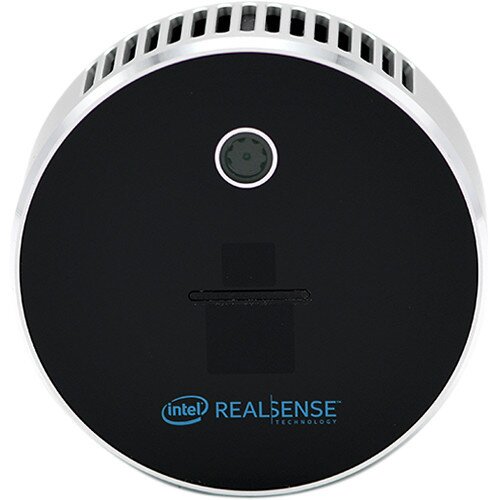

Intel RealSense LiDAR Camera L515 Price Worldwide

By: Intel

Model: 82638L515G1PRQ

Sku: 1HAZHIGMSV

Availability: Out of stock New

Availability: Out of stock

  • Use Environment: Indoor
  • Technology: Laser Scanning
  • Ideal Range: .25 m to 9 m (Range affected by reflectivity)
  • Depth Technology: LiDAR
  • Minimum Depth Distance (Min-Z) at Max Resolution: ~25 cm
  • Depth Accuracy: ~5 mm to ~14 mm thru 9 m
  • Depth Field of View (FOV): 70° × 55° (±3°)
  • Depth Stream Output Resolution: Up to 1024 × 768
  • Depth Stream Output Frame Rate: 30 fps
  • RGB Frame Resolution: 1920 × 1080
  • RGB Frame Rate: 30 fps
  • RGB Sensor Technology: Rolling Shutter
  • RGB Sensor FOV: 70 × 43 (±3)
  • RGB Sensor Resolution: 2 MP
  • Processing: Intel RealSense Vision ASIC
  • Optical board: Laser, MEMS Mirror
  • Form factor: Camera Peripheral
  • Connectors: USB-C* 3.1 Gen 1*
  • Mounting Mechanism: - One 1/4-20 UNC thread mounting point, - Two M3 thread mounting points, - Tripod
Stock Request Notify When Available

First in the family

Intel is proud to introduce a revolutionary solid-state LiDAR depth technology designed for indoor applications. The first product in the new LiDAR depth family, the Intel RealSense LiDAR Camera L515 is perfect for applications that require depth data at high resolution and high accuracy.

Redefining computer vision with Intel RealSense LiDAR

The L515 is a revolutionary solid state LiDAR depth camera which uses a proprietary MEMS mirror scanning technology, enabling better laser power efficiency compared to other time‑of‑flight technologies. With less than 3.5W power consumption for depth streaming, the Intel RealSense LiDAR camera L515 is the world’s most power efficient high‑resolution LiDAR camera.

Logistics and Measurement

The Intel RealSense LiDAR Camera L515 gives precise volumetric measurements of objects. Use the L515 on a handheld device or as part of an inventory management system for quickly counting objects on a shelf, or track every pallet that leaves your warehouse to make sure it's fully loaded with the right inventory.

Optimized for robotics

While all Intel RealSense Depth cameras are necessary components in an intelligent autonomous robotic solution, the Intel RealSense LiDAR camera L515 brings an additional level of precision and accuracy over its entire operational range. Quickly gauge complex objects, handle occlusion or objects behind others with ease for a new level of performance in bin picking or grasping.

3D Scanning

With 3D scanning, one of the biggest challenges is edge fidelity - making sure that objects don't bleed into the background or each other. The Intel RealSense LiDAR Camera L515, has edge fidelity in a class of its own, combined with a quality FHD RGB camera and IMU for more robust handheld scanning solutions. Together these features make the L515 the best option for taking your 3D scanning to the next level.

Computer vision in robotics comes into focus.

In the last few years demand for computer vision technology that reliably works and performs across a variety of conditions has grown rapidly. Learn more about how robots see and understand the world.

Easy transition with the Intel RealSense SDK 2.0

Our open‑source SDK 2.0 offers a variety of wrappers supporting popular programming languages and platforms. The newest addition to the Intel RealSense Technology family uses the same SDK as all other current generation devices, allowing an easy transition from any of our other depth cameras. Develop once and deploy on any current or future Intel RealSense depth device.

The Intel RealSense L515 is a revolutionary solid state LiDAR depth camera which uses a proprietary MEMS mirror scanning technology, enabling better laser power efficiency compared to other time-of-flight technologies. With less than 3.5W power consumption for depth streaming, the Intel RealSense LiDAR camera L515 is the world's most power efficient high-resolution LiDAR camera.

With its internal vision processor, motion blur artifact reduction and short photon to depth latency, the L515 is the right solution for capturing even rapidly moving objects with minimal motion blur.

The Intel RealSense LiDAR Camera L515 delivers unparalleled depth quality for indoor applications. With low power consumption and the ability to generate 23 million accurate depth points per second it is perfect for a wide variety of use cases.

In the Box

  • Intel RealSense LiDAR Camera L515
  • Tripod
  • USB 3.1 Gen 1 Type-C Cable
