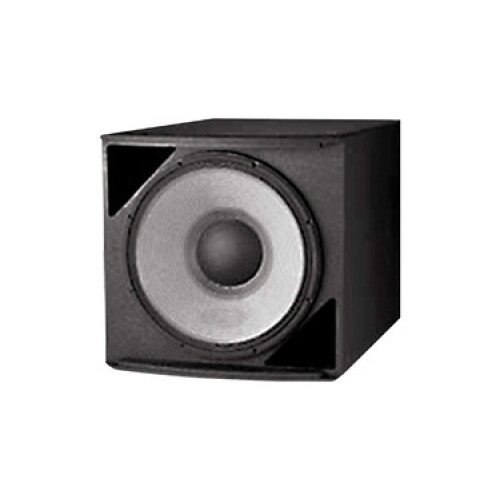

JBL ASB6118 High Power 18-inch Subwoofer
JBL ASB6118 High Power 18-inch Subwoofer Display Gallery Item 1

JBL ASB6118 High Power 18-inch Subwoofer - Shop Now and Save!

By: JBL

Model: ASB6118

Sku: 558D2BI1IA

Be the first to review this product

Sign up for price alert

$3,068.99

Availability: In Stock In Stock

New

  • Frequency Range (-10dB) 28 Hz – 1 kHz
  • Frequency Response (±3 dB) 35 Hz – 1 kHz
  • Transducer Power Rating (AES) 1200 W (4800 W peak), 2 hrs
  • System Power Rating 800 W (3200 W peak), 100 hrs
  • Maximum SPL (1m) 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak)100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)
  • System Sensitivity (1w @ 1m) 30 Hz – 100 Hz: 98 dB100 Hz – 500 Hz: 98 dB
  • Nominal Impedance: 8 ohms
  • LF Driver: JBL 2242H 460 mm (18 in) SVG™ driver with 100 mm (4 in) voice coil
  • Nominal LF Driver Impedance: 8 ohms
  • Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
  • Suspension Attachment: 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
  • Environmental: Mil-Std 810; IP-x3 per IEC529.
Quantity:
  • Add to Wishlist
  • Add to Compare

High Power 18-inch Subwoofer

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.

  • Large vent area for high output.
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

In the Box

  • JBL ASB6118 High Power 18-inch Subwoofer
