Discover JBL Control 25-1 Compact Indoor/OutdoorBackground/Foreground Speaker

By: JBL

Model: Control 25-1

Sku: N3UZK6P6H9

Be the first to review this product

Sign up for price alert

$429.99

Availability: In Stock In Stock

New

  • Frequency Range (-10dB): 60 Hz to 20 kHz
  • Frequency Response (±3 dB): 85Hz - 17 kHz
  • Power Rating: 200 W Continuous Program (2 hrs) 100 W (400W peak), Continuous Pink Noise (2 hrs) 75 W (300W peak) Continuous Pink Noise (100 hrs)
  • Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak
  • Maximum SPL (1m): 110 dB ave. Continuous Pink Noise (116 dB peak)
  • Sensitivity: 90 dB, 1W/1m (ave. 100 Hz – 10 kHz)
  • Coverage Angle: 100°H x 100°V
  • Directivity Factor (Q): 6.04 (averaged 1kHz – 16kHz)
  • Directivity Index (DI): 7.6dB (averaged 1kHz – 16kHz)
  • Impedance: 8 ohms (THRU setting)
  • Crossover Type: 2nd order low-pass, 3rd order high-pass
  • Transformer Taps: 70V: 30W, 15W, 7.5W, 3.7W 100V: 30W, 15W, 7.5W Insertion Loss (0.94 dB at any tap setting Thru Setting: 8Ω nominal
  • Recommended ProtectiveHigh-Pass: 60 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
  • Drivers LF: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure. HF: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former. Enclosure: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
  • Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing.
  • Mounting Hardware: InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
  • Outdoor Capability: IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax grille for breaking up driving rain and for especially difficult environments.
  • Input Connectors: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Quantity:
  • Add to Wishlist
  • Add to Compare

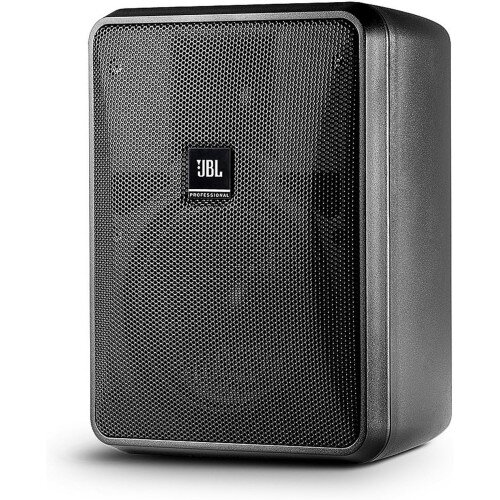

Compact Indoor/Outdoor Background/Foreground Speaker

The Control 25-1 is a two-way 5” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

In the Box

  • JBL Control 25-1 Compact Indoor/OutdoorBackground/Foreground Speaker
