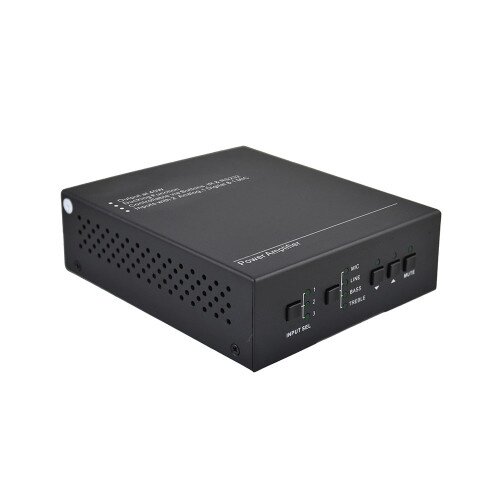

KanexPro Mini 3-Input Audio Amplifier With Mic Mixer
KanexPro Mini 3-Input Audio Amplifier With Mic Mixer Display Gallery Item 1
KanexPro Mini 3-Input Audio Amplifier With Mic Mixer - 2 Display Gallery Item 2

KanexPro Mini 3-Input Audio Amplifier With Mic Mixer Price Worldwide

By: KanexPro

Model: AP3DBL

Sku: CDXENQXTQF

Be the first to review this product

Sign up for price alert

$418.99

Availability: In Stock In Stock

New

  • Fast switching 3 audio inputs (1 digital, 2 analog)
  • One 3-level MIC input with mixer function
  • 40 Watt amplifier output at 70V or 100V
  • Ducking function for auto detect
  • ID loop for RS232 looping control
  • Adjustable volume with Bass & treble
  • Locking power supply
  • Control via front panel, RS232 & IR control
  • Supports Dual-mono output
  • Built-in Microphone mixer (separately controllable)
  • Line audio output, with volume controllable.
  • MIC input supports 48V phantom power
  • Supports balanced/ unbalanced signals
  • Ultra low inrush current
  • Convection cooled, antistatic case design
  • LED indicator, for power and operating status
  • Internal Universal power adaptable (100-240 volt AC, 50/60Hz)
  • Audio Input: 2 x stereo audio (RCA, 3.5mm), digital audio (TOSLINK), MIC (captive screw connector)
  • Audio Output: mono amplifier (3-pin captive screw connector)
  • Output Type: 40W, 70V or 100V
  • Input Impedance for Inputs 1&2: 10KΩ
  • Output Impedance: 50Ω/stereo, 4~8Ω/Amplifier
  • Frequency Response: Input: 120Hz ~ 20KHz, Output: CMRR 70dB 20Hz~20KHz
  • Signal to Noise Ratio: 80dB at maximum output
  • Bandwidth: 120Hz ~ 20KHz
  • Stereo Channel Separation: Input: 75dB 20Hz to 20KHz, Output: THD + Noise 1%(1KHz), 0.3%(20KHz) at nominal level
  • Voltage Gain: 32dB
  • Mic Input Impedance: 48V: 35 Kilo Ohms
  • Mic: 10 Kilo Ohms
  • Line: 75 Kilo Ohms
  • Mic Audio Detection Delay: 1ms
  • Common Mode Rejection Ratio: >70dB (20Hz- 20KHz)
  • Control: RS-232 Serial, 9-pin female D connector, IR remote sensoR
  • Pin Configurations: 2 = TX, 3 = RX, 5 = GND
  • TCP/IP: control through TCPRS2
  • Power consumption: 3.6 Watts
  • Power supply: 24V DC
  • Industry Standards & Certifications: CE, FCC, UL certified
Quantity:
  • Add to Wishlist
  • Add to Compare

40 Watt Power Amp supporting 70V or 100V

The KanexPro AP3DBL is a 3-Input 40-Watt audio amplifier supporting 70V or 100V. It comprises of 3 switchable inputs (RCA, 3.5mm and TOSLINK) for quick switching and sound reproduction. The audio amplifier supports MIC mixing and EQ control perfect for classrooms, conference rooms, lecture halls and restaurants.

In the Box

  • KanexPro Mini 3-Input Audio Amplifier With Mic Mixer
  • IR Remote
  • Sensor
