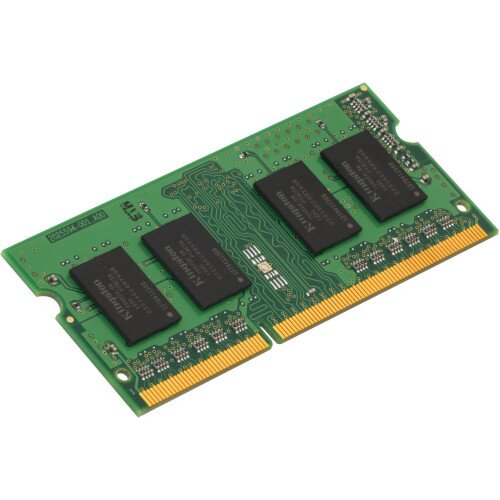

Kingston 4GB Module - DDR3 1333MHz Memory
Kingston 4GB Module - DDR3 1333MHz Memory Display Gallery Item 1
Kingston 4GB Module - DDR3 1333MHz Memory - 2 Display Gallery Item 2

Kingston 4GB Module - DDR3 1333MHz Memory - Shop Now and Save!

By: Kingston

Model: KVR13S9S8/4

Sku: 6D825U81TA

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ=1.5V (1.425V ~ 1.575V)
  • 667MHz fCK for 1333Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • Programmable CAS Write Latency(CWL)=7 (DDR3-1333)
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential withstarting address “000” only), 4 with tCCD=4 which does notallow seamless read or write [either on the fly using A12 orMRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration: Internal self calibration through ZQpin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85°C,3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset
  • PCB: Height 1.18” (30mm), double sided component
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

This document describes ValueRAM's 512M x 64-bit (4GB)DDR3-1333 CL9 SDRAM (Synchronous DRAM), 1Rx8 memorymodule, based on eight 512M x 8-bit DDR3-1333 FBGA compo-nents. The SPD is programmed to JEDEC standard latencyDDR3-1333 timing of 9-9-9 at 1.5V. This 204-pin SODIMM usesgold contact fingers.

In the Box

  • Kingston 4GB Module - DDR3 1333MHz Memory
