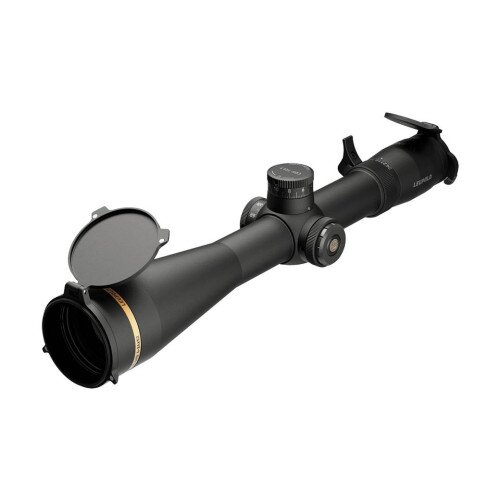

Discover Leupold VX-6HD 4-24X52 CDS-TZL3 Side Focus Illum Impact-23 Rifle Scope

By: Leupold

Model: 179293

Sku: 44P0MH732P

Availability: Out of stock New

Availability: Out of stock

  • Patented Leupold design
  • Incorporates the MOA measurement system, with a grid style pattern
  • Features 1 MOA hash marks on horizontal and vertical posts
  • Wind hold dots are spaced 2 MOA apart
  • Every fourth line is numbered with the MOA value for quick reference points
  • Vertical grid extends down to 23 MOA
  • Makes initial and follow up shots straightforward with multiple well-defined aiming points
  • Red illumination for contrast in low-light situations
  • 1 MOA is approximately 1 inch at 100 yards
  • Intended to be used on highest magnification in rear (second) focal plane scope
  • Battery Type: CR2032
  • BDC Dial Included: No
  • Custom Dial Compatible: Yes
  • Daylight Bright Illumination: No
  • Elevation Adjustment Type: CDS-TZL3
  • Light Management System: Professional-Grade Optical System
  • Locking Dial: Yes
  • Magnification Type: Variable
  • Nightvision Compatible Illumination: No
  • Reticle Focal Plane: Second Focal Plane
  • Revolution Indicator: Yes
  • Reticle: Illum. Impact-23 MOA
  • Rezero Type: Set Screw
  • Reticle Type: Illuminated
  • Adjustable Objective: No
  • Side Focus: Yes
  • Switch Type: Push Button
  • Windage Adjustment Type: Zero-Lock WIndage
  • Elevation Adjustment Value per Click: 1/4MOA
  • Elevation Adjustment Range (MOA): 75
  • Elevation Adjustment Range (MIL): 22
  • Elevation Adjustment Range (cm @ 100m): 218
  • Elevation Adjustment Per Revolution: 20 MOA
  • Elevation Dial Travel Limit: 60MOA
  • Windage Adjustment Value per Click: 1/4MOA
  • Windage Adjustment Range (MOA): 75
  • Windage Adjustment Range (MIL): 22
  • Windage Adjustment Range (cm @ 100m): 218
  • Windage Adjustment Per Revolution: 20 MOA
  • Magnification Max: 24
  • Magnification Min: 4
  • Objective Lens Diameter (mm): 52
  • Linear FOV Low Mag (ft@100yds): 28.1
  • Linear FOV High Mag (ft@100yds): 4.8
  • Angular FOV Low Mag (Degrees): 5.4
  • Angular FOV High Mag (Degrees): .9
  • Eye Relief Low Mag (in): 3.7
  • Eye Relief High Mag (in): 3.8
  • Minimum Parallax-Free Distance (yd): 50
  • Battery Life (hr), Low Intensity: 1600
  • Battery Life (hr), Medium Intensity: 1000
  • Battery Life (hr), High Intensity: 300
  • Number of Illum Settings: 8
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Whether you're in the wilderness or at the range, you never know what distance an opportunity might present itself. This is where the VX-6HD 4-24x52mm comes in. Having the ability to walk around on 4x, knowing you can go all the way up to 24x magnification at a moment's notice gives you the flexibility to dominate almost any hunting or shooting situation. Its 34mm maintube provides enough travel to take advantage of that extra power and the CDS-TZL3 dial takes target-style adjustments to a new level with a push-button locking feature and an easy-to-read revolution indicator.

The 4-24 is built around Leupold’s Professional-Grade Optical System, which offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. The wide zoom range combined with an in-scope electronic reticle level, CDS-ZL2 ZeroLock elevation dial, and removable throw lever, make your VX-6HD the most versatile Leupold riflescope ever made.

The VX-6HD goes where other scopes can't. Its unique combination of features, durability, and professional-grade HD optical performance guarantees that it can handle any challenge you throw at it. The VX-6HD is 100% waterproof and fogproof, and built it for anything, including your next epic adventure. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

6:1 ZOOM RATIO

A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots. The larger the zoom ratio, the more versatile one scope can be.

HIGH DEFINITION

High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.

GUARD-ION

Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.

CUSTOM DIAL SYSTEM

Leupold's Custom Dial System (CDS) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

ILLUMINATED

This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.

MOTION SENSOR TECHNOLOGY (MST)

Motion Sensor Technology (MST) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.

ELECTRONIC RETICLE LEVEL

The Electronic Reticle will flash when the scope isn't level, promoting more accurate long-range shots. It can also simplify the mounting process.

ALUMINA FLIPBACK LENS COVERS INCLUDED

Our high-quality Alumina® flip-back lens covers thread onto the scope to protect the lens from moisture, dirt, and debris.

REVERSIBLE THROW LEVER

This reversible throw lever easily clamps onto specific power-selector rings. Its large surface area makes it ideal for quick magnification changes.

WATERPROOF, FOGPROOF, & SHOCKPROOF

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

In the Box

  • Leupold VX-6HD 4-24X52 CDS-TZL3 Side Focus Illum Impact-23 Rifle Scope
