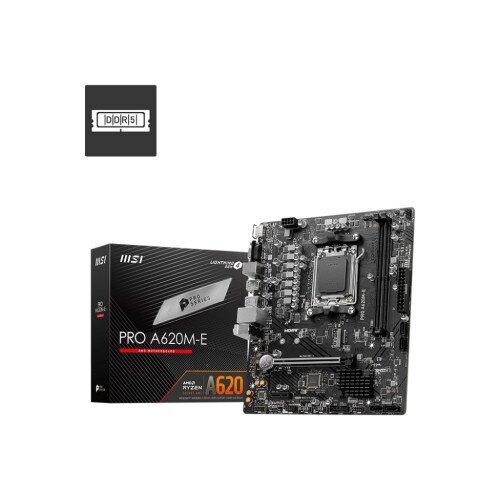

MSI PRO A620M-E Motherboard - Shop Now and Save!

By: MSI

Model: PRO A620M-E

Sku: GCYZ1M2ZMP

$89.99

Availability: In Stock In Stock

New

  • CHIPSET: AMD A620
  • CPU: Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
  • MEMORY: 2x DDR5, Maximum Memory Capacity 96GB, Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 6000+ MHz, 1DPC 2R Max speed up to 6000+ MHz, Supports Dual-Channel mode: Supports non-ECC, un-buffered memory, Supports AMD EXPO
  • ONBOARD GRAPHICS: HDMI, Support HDMI 2.1, maximum resolution of 4K 60Hz, VGA, Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz, Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • SLOT: PCI-E x16 slot, PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • STORAGE: M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 4x SATA 6G
  • RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • USB 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front)
  • LAN Realtek RTL8111H Gigabit LAN
  • AUDIO: Realtek ALC897 Codec, 7.1-Channel High Definition Audio
  • INTERNAL IO: Power Connector(ATX_PWR), Power Connector(CPU_PWR), CPU Fan, 2x System Fan, 2x Front Panel (JFP), Chassis Intrusion (JCI), Front Audio (JAUD), Com Port (JCOM), RGB LED connector(JRGB), TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports
  • LED FEATURE: 4x EZ Debug LED
  • BACK PANEL PORTS: HDMI, VGA, Keyboard/Mouse, USB 3.2 Gen 1 5Gbps (Type-A), LAN port, Audio connectors, USB 2.0
  • OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
  • PCB INFO: mATX, 211mmx243.84mm
Quantity:
  • Add to Wishlist
  • Add to Compare

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

COOLING OVERVIEW

Chipset Heatsink: The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONS

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

EXCLUSIVE UI OF AIDA64 EXTREME

MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

EXPO(EXTENDED PROFILES FOR OVERCLOCKING)

Choose from a preset EXPO profile and automatically overclock compatible DDR memory.

M-FLASH

Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

HARDWARE MONITOR

Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

MEMORY TRY IT

Get extreme speed out of your system memory and get more performance.

SEARCH & FAVORITES

A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

  • Supports AMD Ryzen 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

In the Box

  • MSI PRO A620M-E Motherboard
  • I/O Shield
  • M.2 Screw/Standoff Set
  • Sata Cable
  • Quick Installation Guide
