The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Extended Heatsink: Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads., M.2 Shield Frozr: Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance., Heavy Plated VRM Heatsink: The VRM heatsink covers the upper MOS and helps dissipate the heat., 7W/mK Thermal Pad & Additional Choke Pad: High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed., Chipset Heatsink: The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

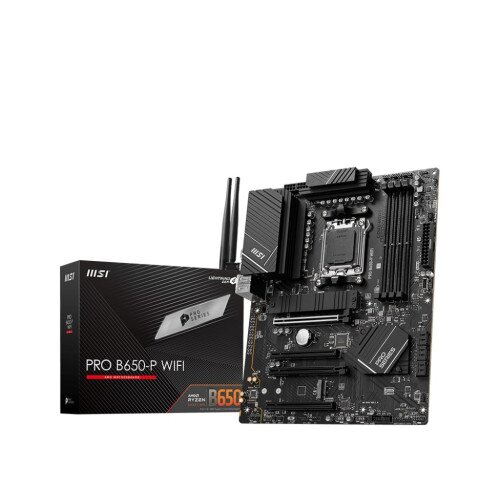

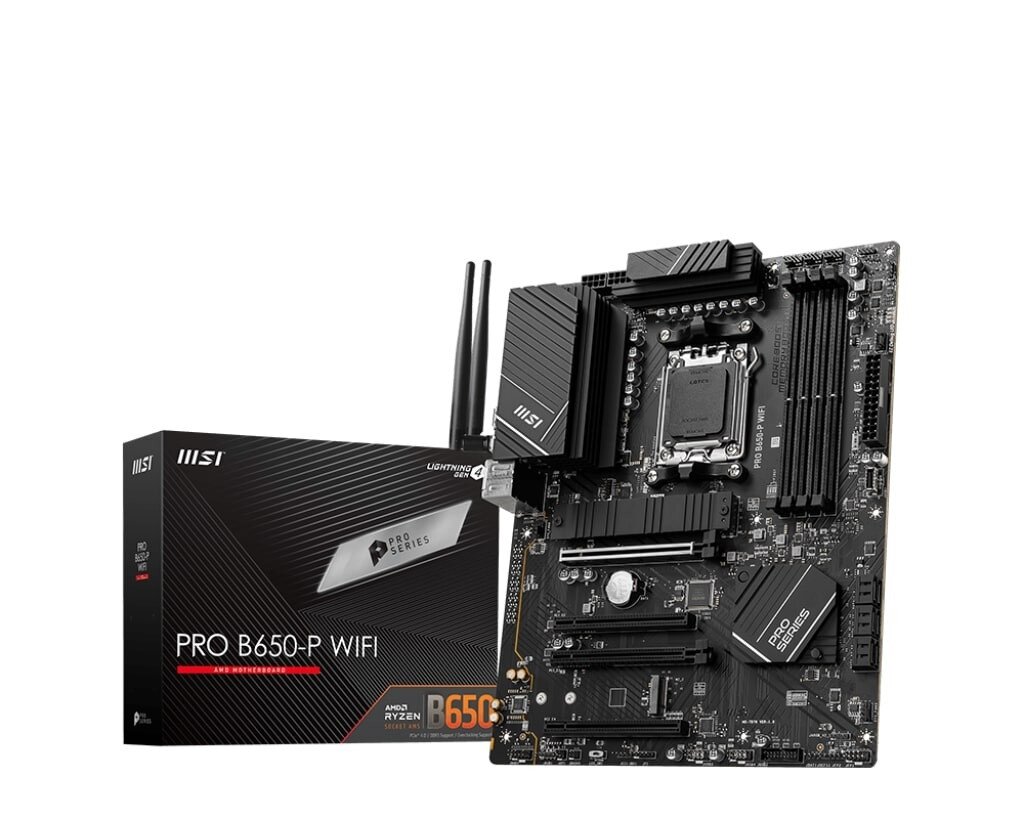

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2 phases with 75A SPS. Combining dual power connectors and 75A Smart Power Stage, PRO B650-P WIFI is ready for the challenge of high-end processors., 12 PHASE: CORE POWER, SPS/75A, 2 PHASE: SOC POWER, 1 PHASE: MISC, POWER.
Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission., 6 PCB layers, 2oz Thickened Copper,
Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSI’s own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.
MSI PBO Thermal profiles are setting maximum CPU temperature at 85°C, 75°C and 65°C levels. With the thermal profiles, the CPU operates at lower voltage and temperature but remaining the same performance.
Config TDP is designed to provide ECO Mode (65W) or different TDP (PPT/TDC/EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and don’t need to modify settings manually for each TDP.
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
Run into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer multiple options to successfully boot your system again., Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required. Leam more.
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation., REINFORCED, HEAVY SOLDERED CONNECTIONS MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
MSI motherboards provide 60 days free trail of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe., Up to 50 GB PC cloud backup, Real time Threat protection and Smart Firewall, Password manager, PC SafeCam
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
Choose from a preset EXPO profile and automatically overclock compatible DDR memory.
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
Get extreme speed out of your system memory and get more performance.
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!
Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.
One click for setting your computer, even customize own profile as your preference.
Get immediate access to your critical hardware information in real-time.
Tune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.
Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.
HIGH DEFINITION AUDIO PROCESSOR, HIGH QUALITY AUDIO CAPACITORS, HIGH QUALITY AUDIO JACKS, ISOLATED AUDIO SIGNAL, DE-POP PROTECTION
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
MSI's premium network solution provides incredible data transfer speed for demanding users., Wi-Fi 6E, Bluetooth 5.2, 2.5G LAN
