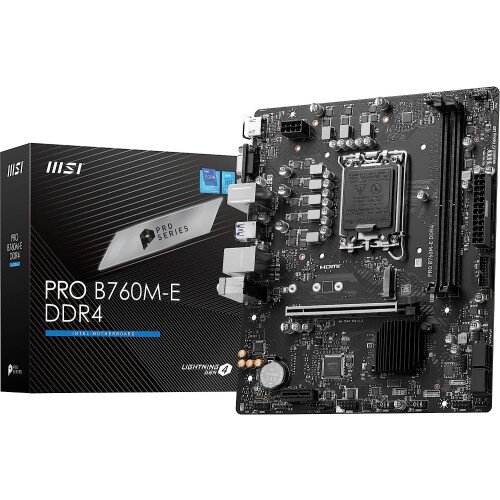

MSI PRO B760M-E DDR4 Motherboard
MSI PRO B760M-E DDR4 Motherboard Display Gallery Item 1
MSI PRO B760M-E DDR4 Motherboard - 2 Display Gallery Item 2

MSI PRO B760M-E DDR4 Motherboard - Shop Now and Save!

By: MSI

Model: PRO B760M-E DDR4

Sku: N7ETA3O02A

Be the first to review this product

Sign up for price alert

$153.99

Availability: In Stock In Stock

New

  • Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
  • CHIPSET: INTEL B760
  • CPU SUPPORT: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors, LGA 1700
  • MEMORY: 2x DDR4, Maximum Memory Capacity 64GB, Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC), Max. overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz, 1DPC 2R Max speed up to 4600+ MHz / Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP)
  • ONBOARD GRAPHICS: 1x HDMI, Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz, 1x VGA, Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  • EXPANSION SLOT: PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to (From CPU), PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
  • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • STORAGE: 1x M.2, M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, 4x SATA 6G, SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
  • LAN: Realtek RTL8111H Gigabit LAN
  • AUDIO: Realtek ALC897 Codec, 7.1-Channel High Definition Audio
  • LED FEATURE: 4x EZ Debug LED
  • OPERATING SYSTEM: Support for Windows 11 64-bit, Windows 10 64-bit
Quantity:
  • Add to Wishlist
  • Add to Compare

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED, HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

DDR4 MEMORY SOLUTION

With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

In the Box

  • MSI PRO B760M-E DDR4 Motherboard
