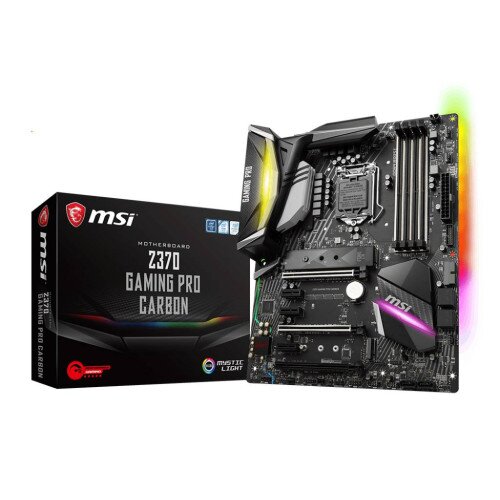

MSI Z370 Gaming Pro Carbon LGA 1151 Motherboard - Shop Now and Save!

By: MSI

Model: Z370 Gaming Pro Carbon

Sku: AXBVIIFJAI

Availability: Out of stock New

Availability: Out of stock

  • CPU (MAX SUPPORT: i7
  • SOCKET: 1151
  • CHIPSET: Intel Z370 Chipset
  • DDR4 MEMORY: 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 4
  • MAX MEMORY (GB): 64
  • PCI-E X16: 3
  • PCI-E GEN: Gen3
  • SATAIII: 6
  • PCI-E X1: 3
  • M.2 SLOT: 2
  • RAID: 0/1/5/10
  • TPM (HEADER): 1
  • LAN: 10/100/1000*1
  • USB 3.1 PORTS(FRONT): 4(Gen1, Type A)
  • USB 3.1 PORTS (REAR): 1(Gen2, Type C), 1(Gen2, Type A), 4(Gen1, Type A)
  • USB 2.0 PORTS (FRONT): 4
  • USB 2.0 PORTS (REAR): 2
  • AUDIO PORTS (REAR): 5+Optical S/PDIF
  • DISPLAYPORT: 1
  • HDMI: 1
  • DIRECTX: 12
  • FORM FACTOR: ATX
  • SLI: Y
  • CROSSFIRE: Y
  • OPERATING SYSTEM: Support for Windows 10 64-bit
  • PROCESSOR: PROCESSOR
  • CHIPSET: Intel Z370 Chipset
  • MEMORY: 4 x DDR4 memory slots, support up to 64GB, Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP)
  • SLOTS: 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes), 3 x PCIe 3.0 x1 slots
  • ONBOARD GRAPHICS: HDMI port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz, DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz
  • MULTI-GPU: Supports 2-Way NVIDIA SLI Technology, Supports 3-Way AMD CrossFire Technology
  • STORAGE: Intel Z370 Chipset: 6 x SATA 6Gb/s ports, 2 x M.2 slots (Key M), Support up to PCIe 3.0 x4 and SATA 6Gb/s, Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card, M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices, M2_2 slot supports 2242/ 2260 /2280 storage devices, Intel Optane Memory Ready for all M.2 slots, M.2 and SATA ports maximum support 1x M.2 PCIe SSD + 1x M.2 SATA SSD + 5x SATA HDDs. Please refer to page 34 for M.2 slots with examples of various combination possibilities, The Turbo U.2 Host Card is not included, please purchase separately, Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
  • RAID: Intel Z370 Chipset: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 for M.2 PCIe storage devices, M.2 and SATA ports maximum support 1x M.2 PCIe SSD + 1x M.2 SATA SSD + 5x SATA HDDs. Please refer to page 34 for M.2 slots with examples of various combination possibilities.
  • USB: ASMedia ASM3142 Chipset: 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel, 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel/ Intel Z370 Chipset: 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors), 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • Realtek ALC1220 Codec: 7.1-Channel High Definition Audio, Supports S/PDIF output
  • LAN: 1 x Intel I219-V Gigabit LAN controller
  • INTERNAL CONNECTORS: 24-pin ATX main power connector, 8-pin ATX 12V power connector, 6 x SATA 6Gb/s connectors, 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports), 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4-pin CPU fan connector, 4-pin water pump fan connector, 4-pin system fan connectors, Front panel audio connector, 2 x Front panel connectors, 2 x 5050 RGB LED strip 12V connectors, WS2812B Individually Addressable RGB LED strip 5V connector, CORSAIR Individually Addressable RGB LED strip 5V connector, TPM module connector, Chassis Intrusion connector, Clear CMOS jumper
  • BACK PANEL PORTS: Keyboard / Mouse, USB 3.1 Gen1, Intel Gigabit LAN, Golden Audio Connectors, USB 2.0, DisplayPort, USB 3.1 Gen2 Type-A/C, HDMI, USB 3.1 Gen1, Optical S/PDIF-Out
  • MOUNTING: 9 mounting holes
  • OPERATING SYSTEM: Support for Windows 10 64-bit
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

GAME IN STYLE

Unlimited customization options and packed with exclusive gaming features, MSI PERFORMANCE GAMING motherboards offer the best possible gaming experience.

We are proud to be a part of the MSI GAMING testing program to help give gamers the best hardware to play games at the highest level.

TUNING

DESIGNED FOR LIMITLESS TUNING

Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

MYSTIC LIGHT

PERSONALIZE YOUR GAMING RIG

Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!

COOLING

STAY COOL WHILE GAMING

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

GAMING LAN

DOMINATE THE GAME WITH THE LOWEST LATENCY

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.

USB

MAXIMIZE YOUR USB DEVICE PERFORMANCE

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds up to 10Gb/s!

GAMING FEATURES

YOUR IN-GAME ADVANTAGE

Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

SOFTWARE

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.

MEMORY

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability and increased stability.

BE THE FIRST ON THE BATTLEFIELD

This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.

QUALITY & PROTECTION

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible gaming and professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.

3D PRINTING & MODDING

FIRE YOUR IMAGINATION!

Create your own unique modifications for MSI GAMING motherboards! MSI supports 3D-printable parts for personalization. With various design offered by MSI MOD HUB, you are able to easily customize heatsink covers, SLI bridges, and even your own name plates and logos in your favorite colors and materials.

BIOS

A GAMERS' BIOS

We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.

VR

IMMERSE YOURSELF INTO VIRTUAL WORLDS

Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.

In the Box

  • MSI Z370 Gaming Pro Carbon LGA 1151 Motherboard
  • I/O Panel
  • Label Kit
  • Support DVD
  • SLI Bridge
  • Pack of Cables
