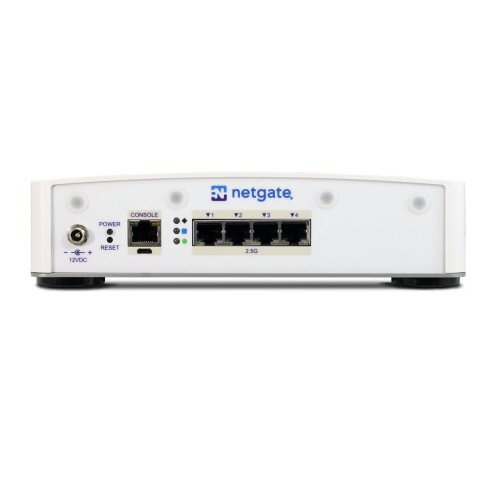

The Netgate 4200 is ideal for pro-home, small/medium businesses, branch and edge deployments that require flexible port configurations to support 1 to 2.5 Gbps WAN capabilities across four discrete, unswitched 2.5 Gbps RJ-45 ethernet LAN ports - all in a silent desktop form factor.
L3 Forwarding (Router)
- IPERF3 Traffic: 8.75 Gbps
- IMIX Traffic: 9.28 Gbps
Firewall (10k ACLs)
- IPERF3 Traffic: 8.61 Gbps
- IMIX Traffic: 3.21 Gbps
IPsec VPN (AES-GCM-128 w/AES-NI)
- IPERF3 Traffic: 3.2 Gbps
- IMIX Traffic: 1.05 Gbps
CPU: Intel Atom C1110 with AVX2, 4-core @ 2.1 GHz. Delivers up to 3x on benchmarking results for routing, firewall and IPsec VPN versus the Netgate 4100.
Network Ports: Four 2.5G independent and configurable RJ45 LAN ports for maximum flexibility. Configure it for single or dual WAN, or high-availability failover.
Storage: 128 GB NVMe M.2 SSD
Memory: 4 GB LPDDR5 RAM. DDR5 memory allows more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).
Cooling: The passive cooling system and low power draw of the Netgate 4200 provides efficient thermal management and silent operation expected from smaller devices despite its significantly higher performance.
pfSense Plus software provides the performance, flexibility, reliability and business assurance expected from leading secure networking applications:
- Up to 10 Gbps performance
- Flexible 3rd-party application options
- Traditional management mechanisms
- Proven reliability
- Complete business assurance support
All at a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect answer. Popular pfSense Plus use cases include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP Server, IDS/IPS, failover WAN, and much more.
LOW TOTAL COST OF OWNERSHIP
- No additional software update cost for the life of the product.
- No artificial limits or add-ons required to make your system fully functional.
- No additional usage or feature-based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
- Low power requirements to help save you money.
- This system is designed for a long deployment lifetime.
GROWS WITH YOU
- Get all the security features you need to protect your home or business.
- Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
- Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring.
- Maximum Active Connections: 4,000,000
EASY GUI MANAGEMENT
- Manage pfSense Plus software settings through our web-based GUI.
- No fumbling with a command-line interface or typing arcane commands.
SECURE REMOTE ACCESS
- Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect securely, or connect to the Cloud!
- Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud.
Router
- Policy-based routing
- Multiple IP addresses per interface
- Multiple WAN connections (with load balancing and failover)
- Complex NAT mapping (outbound and inbound)
- Concurrent IPv4 and IPv6 support
- Optional multi-node High Availability (HA) clustering
- Dynamic routing protocol support [w/pkg]
Firewall, Attack Prevention, & Content Filtering:
- Extensive firewall rules
- Stateful filtering & packet inspection
- Per-interface configuration
- Ethernet (layer 2) rule-based packet filtering
- IP/DNS-based filtering and blacklisting [w/pkg]
- IDS/IPS with Snort-based packet analyzer [w/pkg]
- Layer 7 application detection and blocking [w/pkg]
- Reverse proxy [w/pkg]
- Geo/country blocking, IP block lists [w/pkg]
VPN
- Site-to-site and remote access VPNs
- IPsec, OpenVPN, WireGuard
- Split tunneling
- IPsec policy-based and route-based protocol support
- OpenVPN Data Channel Offload (DCO)
- Intel IPsec Multi-Buffer (IIMB) where available
