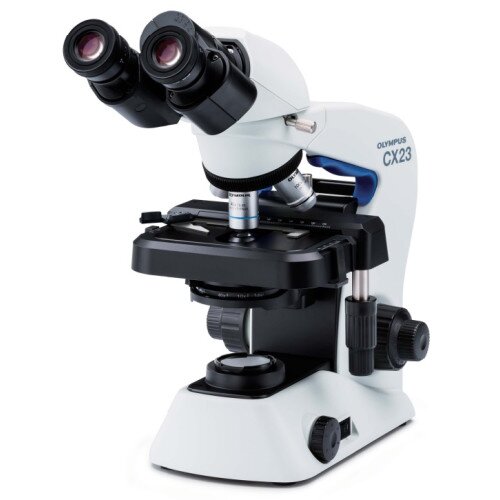

Olympus CX23 Biological Microscope - Shop Now and Save!

Model: CX23LEDRF

Availability: Out of stock

Body: Aluminum die-cast metal frame, protective plastic covering
Optical System: Infinity optical system
Illumination System: Built-in transmited illumination system, LED power consumption: 0.5 W (nominal value)
Focusing: Stage height movement, Coarse movement stroke: 15 mm, Coarse adjustment limit stopper, Torque adjustment for coarse adjustment knob, Fine focus knob (minimum adjutsment gradations: 2.5 μm)
Revolving Nosepiece: Fixed quadruple nosepiece with inward tilt
Observation: Type: Binocular, anti-fungal
Condenser: Abbe condenser NA 1.25 with oil immersion
Rated Voltage/Electric Current: AC 100 – 240 V 50/60 Hz 0.4 A
Power Consumption: Less than 2 W

Stock Request Notify When Available

Ergonomic grips add safety when retrieving the microscope from high places.
Colored grips indicate the appropriate places to hold the microscope.
Smooth, rounded design eliminates sharp edges.
The arm is angled to keep user’s wrists in a comfortable, neutral position.
The eyepiece can be fi xed in place to help prevent damage or loss during transportation.
A rackless stage and stage cover enable safety and stability during long periods of use.
A locking pin keeps the observation tube in place.
Interpupillary adjustments, ranging from 48 to 75 mm, enables individual users to set it to their needs.
Eyepoint adjustments accommodate the user’s height and provide greater comfort.
Left and right diopter adjustment enable optimal focus for each eye.
