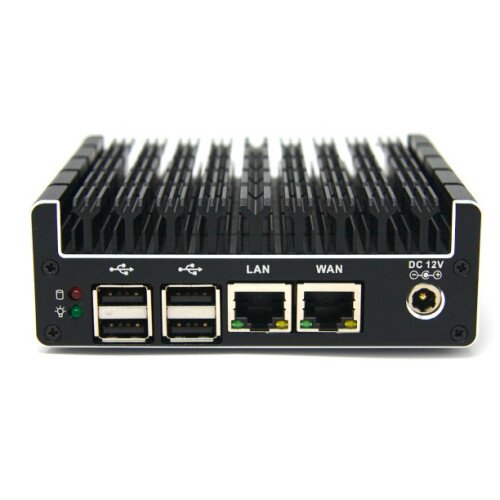

Discover Protectli FW2B - 2 Port Intel J3060 - 2GB DDR3L - 240GB mSATA

By: Protectli

Sku: 7WUALX2MAG

$220.99

$262.99

$283.99

$336.99

$420.99

$515.99

$283.99

$304.99

$357.99

$430.99

$536.99

$862.99

$346.99

$409.99

$483.99

$588.99

$915.99

$236.99

$236.99

$254.99

$258.99

$258.99

$276.99

$281.99

$281.99

$300.99

$298.99

$297.99

$315.99

$262.99

$262.99

$280.99

$300.99

$300.99

$318.99

$258.99

Availability: In Stock In Stock

New

  • Intel Celeron J3060 (64 Bit, 1.6 GHz, Turbo 2.48 GHz, 2MB L2 Cache)
  • Processor Cores: 2 Processor Threads: 2
  • Intel AES-NI: Supported
  • Virtualization: Intel Vt-x
  • Network: 2x Intel 1G Ethernet, RJ-45
  • Video / Graphics: Intel Clear Video HD, 2x HDMI 1.4
  • Audio: Audio over HDMI, 3.5mm Audio Jack
  • Memory: SO-DIMM DDR3L-1600, 1.35v, Max 8GB
  • Storage: mSATA
  • External I/O: 2x RJ-45 Ethernet, 2x USB 3.2 Gen 2 Type A, 4x USB 2.0 Type A, 2x HDMI, 3.5mm Audio Jack, 2x WiFi/LTE Antenna Mounting Holes, 12V DC Power Jack
  • Internal I/O: SATA Header, 1x SATA Power, Full Height mPCIe (USB/PCIe 2.0) for WiFi or LTENote: PCIe mode is only available on AMIBIOS, USB 2.0 Header, CMOS Reset (2 pin), Front Panel Header (9 pin)
  • Super I/O Chip: IT8613E
  • BIOS: AMI or coreboot
  • Indicators: LED Power Button (Blue), LED Power Indicator (Green), LED Disk Activity Indicator (Red), LED Disk Activity Indicator (Yellow)
  • Power: Input 12V DC, 1x DC Power Jack
  • Power Usage: Max 16W
  • Mounting Options: Desktop, VESA Bracket, Optional 1RU Rack Mount
  • Operating Temperature: +14° - +122° F, -10° - +50° C
  • Operating Humidity: 0 – 95% relative humidity, non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare

The Vault is a small form factor PC built for use as a firewall / router. The FW2B is based on a 2 network port design that leverages a low power, but versatile Intel Celeron J3060 CPU. This CPU supports AES-NI, Intel’s Hardware Acceleration for Encryption. The Vault uses standard Intel components (including Intel network ports) which results in compatibility with a variety of operating systems, including a number of open source firewall projects. The Vault is fanless so it has no moving parts, which results in an incredibly durable platform that can be used in less than ideal environments. Its all aluminum enclosure (no plastic here) is a giant heat sink, keeping the CPU cool.

The FW2B can accommodate up to 8GB of DDR3L-1600 RAM and 1TB mSATA storage drive.

In the Box

  • Protectli FW2B - 2 Port Intel J3060
  • VESA Mount kit
  • Power Supply
  • Serial Console Cable
  • Quick Start Guide
