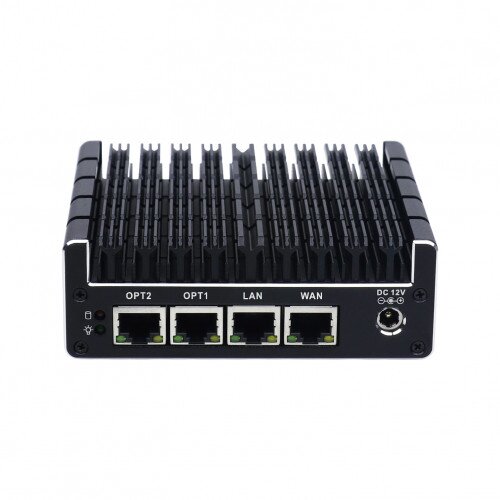

Discover Protectli FW4B - 4 Port Intel J3160 - 4GB DDR3L - 32GB mSATA

By: Protectli

Sku: EFSPI01DG2

$304.99

$325.99

$411.99

$431.99

$451.99

$557.99

$336.99

$428.99

$448.99

$473.99

$567.99

$873.99

$462.99

$482.99

$515.99

$620.99

$643.99

$428.99

Availability: In Stock In Stock

New

  • Operating System (Pre-installed mSATA): None
  • Storage (mSATA SSD): 32GB Protectli
  • Processor: Intel J3160 (64 Bit, 1.6 GHz, Turbo 2.24 GHz, 2MB L2 Cache)
  • Processor Cores: 4
  • Processor Threads: 4
  • Intel AES-NI: Supported
  • Virtualization: Intel Vt-x
  • Network: 4x Intel 1G Ethernet, RJ-45
  • Video / Graphics: Intel Clear Video HD, 2x HDMI 1.4
  • Audio: Audio over HDMI, 1x 3.5mm Audio Jack
  • Memory: SO-DIMM DDR3L-1600, 1.35v, Max 8GB
  • Storage: mSATA
  • External I/O: 4x RJ-45 Ethernet, 2x USB 3.0 Type A, 2x USB 2.0 Type A, 2x HDMI, 3.5mm Audio Jack, RJ-45 COM, 12V DC Power Jack
  • Internal I/O: Mini PCIe for mSATA, SATA Header, 1x SATA Power, USB 2.0 Header, CMOS Reset (2 pin), Front Panel Header (9 pin)
  • BIOS: AMI (Traditional) BIOS
  • Indicators: LED Power Button (Blue), LED Power Indicator (Green), LED Disk Activity Indicator (Red), LED Disk Activity Indicator (Yellow)
  • Power: Input 12V DC, 1x DC Power Jack
  • Power Usage: Max 20W
  • Chassis: Fanless, Aluminum, Black
  • Mounting Options: Desktop, VESA Bracket, Optional 1RU Rack Mount
  • Operating Temperature: +14° - +122° F, -10° - +50° C
  • Operating Humidity: 0 – 95% relative humidity, non-condensing
  • Approvals: UL (Power Supply), FCC Part 15 Class B, CE, RCM, RoHS
  • Power Cable: US
Quantity:
  • Add to Wishlist
  • Add to Compare

The Vault is a small form factor PC built for use as a firewall / router. The FW4B is based on a 4 network port design that leverages a low power, but versatile Intel Celeron J3160 CPU. This CPU supports AES-NI, Intel’s Hardware Acceleration for Encryption. The Vault uses standard Intel components (including Intel network ports) which results in compatibility with a variety of operating systems, including a number of open source firewall projects. The Vault is fanless so it has no moving parts, which results in an incredibly durable platform that can be used in less than ideal environments. Its all aluminum enclosure (no plastic here) is a giant heat sink, keeping the CPU cool.

The FW4B can accommodate up to 8GB of DDR3L-1600 RAM and 1TB mSATA storage drive.

In the Box

  • Protectli FW4B - 4 Port Intel J3160
  • VESA mount kit
  • 12v Power Supply
  • Serial Console Cable
  • Quick Start Guide
