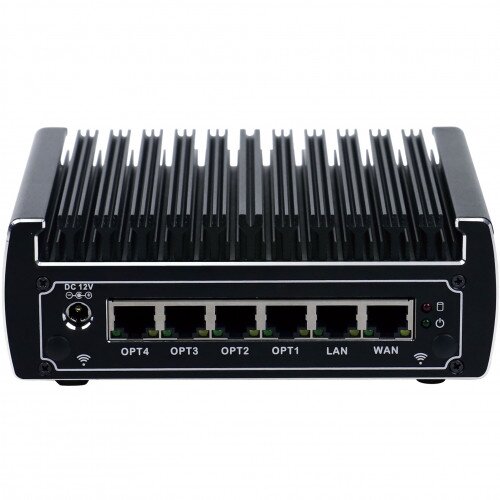

Protectli FW6B - 6 Port Intel i3 - Barebone - Shop Now and Save!

By: Protectli

Sku: ASLXPSXWCQ

$488.99

$592.99

$665.99

$748.99

$852.99

$686.99

$738.99

$810.99

$914.99

$821.99

$862.99

$935.99

$1,039.99

$1,299.99

$1,143.99

$1,195.99

$1,247.99

$1,456.99

$488.99

Availability: In Stock In Stock

New

  • Intel i3 7100U Dual Core with Hyperthreading at 2.4GHz
  • 6 Intel Gigabit 82583V Ethernet NIC ports
  • AES-NI
  • Fanless and Silent
  • No pre-installed Operating System
  • Included VESA mount kit
  • Included wire harness for internal 2.5″ SSD
  • Processor: CPUIntel Kaby Lake i3-7100U (64 Bit, 2.4 GHz, 2 Cores, 4 Threads, 3MB Smart Cache), GPUIntegrated Intel HD Graphics 620, AES-NISupported
  • Memory and Storage: RAM2x SO-DIMM Dual Channel DDR4-2133/2400, 1.2v, Max 2133 MT/s, Max 32GB, Storage1x mSATA SSD, Max 1 TB, Optional Storage1x Internal 2.5 in HDD
  • External I/O: Networking6x Intel 82583V Gigabit Ethernet, RJ-45, USB4x USB 3.0, WirelessOptional 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K), COM Port1x RJ45 COM Port, Display1x HDMI, PowerInput 12V DC, Illuminated Power Button (Blue), Power Indicator1x Power LED (Green), Activity Indicator1x HDD Activity LED (Red)
  • Internal I/O: SATA1x internal mSATA, WirelessOptional 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K), CPU Fan Header1x CPU Fan HeaderWireless Socket1x MINI PCIe only for optional Protectli WiFi Kit
  • Chassis Description: Fanless, Aluminum, Black
  • Mounting Options: Desktop, VESA
  • Max Power: 30W
  • Emissions: FCC Part 15
Quantity:
  • Add to Wishlist
  • Add to Compare

The Vault is a small form factor PC built for use as a firewall / router. The FW6 is based on a 6 network port design that leverages a low power, but versatile Intel Celeron i3-7100U CPU. The Kaby Lake CPU supports AES-NI, Intel’s Hardware Acceleration for Encryption. The Vault uses standard Intel components (including Intel NIC ports) which results in compatibility with a variety of operating systems, including a number of open source firewall projects. The Vault is fanless so it has no moving parts, which results in an incredibly durable platform that can be used in less than ideal environments. Its all aluminum enclosure (no plastic here) is a giant heat sink, keeping the CPU cool. The enclosure also comes with pre-drilled holes for an available wireless kit

The FW6 Series units come with a VESA mount kit and a wire harness for mounting a 2.5″ drive (SSD recommended) internally.

In the Box

  • Protectli FW6B - 6 Port Intel i3
  • External Mounting Bracket
  • Power Supply
  • Power Cord
  • SATA Cables
  • Serial Cable
