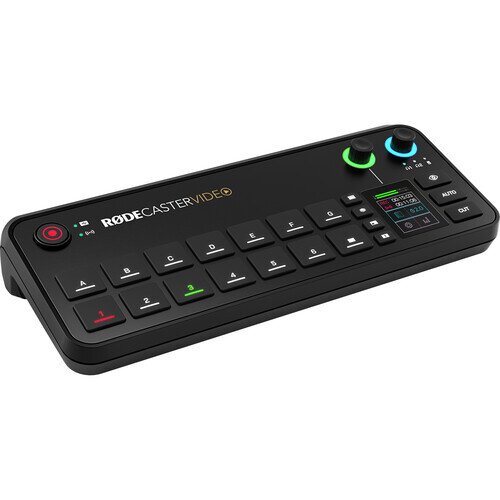

RODE RODECaster Video and Audio Production Console - Shop & Save Big!

By: RODE

Model: RCV

Sku: GB17FTBGPN

$1,273.99

Availability: In Stock In Stock

New

  • Video Input Feeds: 6 simultaneous
  • HDMI Inputs: 4 type-A (HDMI 1.4b)
  • USB (UVC) Inputs: 2 multi-function USB-C for UVC video
  • HDMI Outputs: 2 configurable – preview, program, multiview
  • Video Input Frame Rates: 1920x1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 / (HDMI only) 1920x1080i: 25, 29.97, 30
  • Video Output Frame Rates: 1920x1080p: 24, 25, 30, 50, 60
  • Video Streaming Standards: 1920x1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60
  • Video Engine Colour Space / Bit Depth: 4:4:4 RGB / 8-bit
  • HDMI Input Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
  • USB Input Colour Space: 4:2:2 YUV, 4:2:0 YUV (NV12)
  • HDMI Output Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV / 8-bit
  • USB Output Colour Space / Bit Depth: 4:2:2 YUV / 8-bit
  • Format and Frame Rate Converters: On all HDMI and USB inputs
  • Power Supply Requirements: USB-C PD 60W, 20V 3A
  • Direct Streaming: Real Time Messaging Protocol (RTMP/RTMP) over Ethernet or Wi-Fi
  • Supported Platforms: Youtube Live, Twitch Live, Facebook Live, Twitter/X Live, Custom server
  • Network: Ethernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4 and 5GHz) for streaming, configuration, remote control with computer and over-theair updates
  • Storage Media: External USB mass storage device (exFAT format) for recordings
  • Video Recording: Program feed as H.264/AVC MP4 file with embedded AAC stereo mix
  • Isolated (ISO) Video Recording: 6 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30)
  • Audio Recording: Stereo mix WAV audio file
  • Multitrack Audio Recording: 9 independent stereo WAV audio files
  • Compatible Operating Systems: macOS 11 or later / Windows 10 Version 1803 or later, Windows 11
  • Analog Audio Inputs: 2 combo jacks (microphone, line or instrument) with Revolution Preamps
  • Wireless Audio Inputs: 2 Series IV wireless receivers
  • Analog Audio Outputs: 2 headphone outputs (1/4-inch) / 2 balanced line outputs (1/4-inch, L/R)
  • Preamps: Frequency range: 20Hz – 20kHz, Input gain: up to 76dB Input / Equivalent Input Noise: -131.5dBV (A-weighted)
  • Total Number of Layers: 9 simultaneous in Preview and Program
  • Downstream Keyers: 2 (overlays and logo)
  • Chroma Keyers (Green and Blue): 2
  • Media Players: 2 simultaneous
  • Transitions: SMPTE wipes, dip and fade
  • Media Player: Expandable microSD card storage / Videos: MP4 / Images: PNG, JPG / Audio: WAV
  • Bluetooth: 5.3 (for stereo audio input or phone calls)
Quantity:
  • Add to Wishlist
  • Add to Compare

All-in-One, All at Once

The ultimate all-in-one content creation tool, the RODECaster Video is the first in its class to seamlessly blend comprehensive video and audio production into a single, compact device. Offering unmatched flexibility in switching, mixing, processing, recording and streaming multiple video and audio sources at once, it is the perfect centrepiece for any content creation setup.

For Anyone and Everyone

With its wide array of connectivity options and its completely customisable architecture, the RODECaster Video can be tailored to meet your exact needs, no matter what kind of video production you do.

Professional Production Made Simple

It’s never been easier to create professional productions with incredible video and audio. The RODECaster Video’s intuitive interface and dynamic touchscreen give you hands-on control of every element of your show, from switching video and configuring complex multi-source layouts to mixing and processing your audio.

Switch it Up

With simultaneous control over six different video feeds, the RODECaster Video allows you to seamlessly switch between cameras, consoles and other visual inputs to fully immerse your audience in your show. Cut between your shots instantly or apply tasteful fades, dips and wipes with fully customisable transitions – you can even sequence your show with live previews of each feed before you make the switch.

Set the Scene

The RODECaster Video is the first of its kind to offer an intuitive scene-based switching architecture, making it easier than ever to customise and configure complex video arrangements and switch to them at the press of a button.

Integrated Professional Audio

With the ability to mix, process and route up to nine audio sources at once, the RODECaster Video sets a new standard for power and flexibility in audio production. Each channel has access to a full suite of studio-grade effects and processors powered by APHEX, allowing you to sculpt your dream sound and deliver polished, professional results every time.

Expanded USB Inputs

The RODECaster Video features two flexible USB-C ports for expanding your production with extra video and audio devices. You can connect compatible USB webcams, capture cards and other UVC video devices, as well as RODE USB microphones and even the RODECaster Pro II and RODECaster Duo!

Hands-free Auto-Switching

Don’t have a producer? Intelligent auto-switching technology will automatically switch your camera angles depending on who’s talking – perfect for video podcasts, panel shows, and other live discussions.

Comprehensive Multiview

The RODECaster Video’s multiview display provides a comprehensive overview of all your production’s critical information in one screen. With previews of every input, scene and feed, alongside recording, streaming and audio information, you can be confident you have complete control of your show.

Form Follows Function

The RODECaster Video provides immediate access to a wide range of creative tools with its four function buttons, giving you unprecedented hands-on control over advanced video techniques and quick access to your graphics and media.

Media Player

Integrate video files, images and sounds into your production with ease.

Graphics Overlay

Access and arrange custom logos, watermarks, lower-thirds and other graphic assets.

Multi-source Layouts

Configure multiple video sources into arrangements such as picture-in-picture, split screen and more.

Automatic Keying

Apply an automatic chroma key to your input – it’s never been easier to set up a green screen.

Record On-Board

You can capture your entire video and audio production directly to a connected hard drive or USB storage device, and the option to record each video and audio source independently provides ultimate flexibility in post-production.

Stream to Your Favourite Platform

Stream your show directly to Twitch, YouTube or your favourite streaming platform via Wi-Fi or ethernet and use custom audio routing to send a completely different mix to your audience, your headphones and your recording.

Intuitive Interface

The large high-resolution touchscreen and versatile rotary encoder provide intuitive hands-on control over every aspect of your production, from applying transitions and previewing your inputs to adjusting volume levels and configuring settings.

Wireless Remote Control

For setups where you can’t be close to the console, the RODECaster Video boasts complete wireless remote control via RODE Central, allowing you to switch inputs, adjust settings and configure complex scenes from your computer.

In the Box

  • RODE RODECaster Duo Integrated Audio Production Studio
  • 2 x External Antenna
  • SuperSpeed USB-C to USB-C Cable
  • Power Supply
