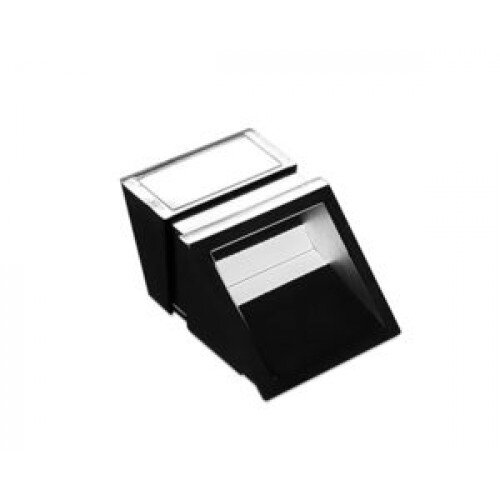

SecuGen U20-A USB Fingerprint Sensor Price Worldwide

By: SecuGen

Model: U20-A

Sku: CLYRENKOX1

Availability: Out of stock New

Availability: Out of stock

  • Image Resolution: 500 DPI
  • Image Size: 300 x 400 pixels
  • Platen Size: 18.2 mm x 23.1 mm
  • Sensing Area: 15.2 mm x 20.3 mm
  • Image Gray Scale: 256 levels (8-bit)
  • Light Source: Green LED
  • Smart Capture Speed: 0.2 ~ 0.5 seconds
  • Biometric Standards/Specs: INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, FIPS 201, FBI (PIV, Mobile ID FAP 10), NIST MINEX, WSQ
  • Cable Length: 1500 mm
  • Operating Temperature: -20° ~ 65°C
  • Operating Humidity: 90% or less RH, noncondensing
  • Interface: USB 2.0 Hi-Speed
  • Supply Voltage: 5V (via USB)
  • Current Consumption (max): 130 mA
  • Compliance: FCC, CE, KC, RoHS, CB, WEEE, USB 2.0, WHQL
  • Dust/Water Resistance: Optional (up to IP54-rating)
Stock Request Notify When Available

SecuGen’s highly versatile USB fingerprint sensor modules capture and transmit fingerprint data and can be integrated into a wide range of hardware devices. These compact and durable fingerprint modules are based on SecuGen’s latest, patented fingerprint technology that ensures high quality imaging and accuracy.

All models can be integrated with IP-rated applications that require dust and water resistance and ruggedness for use in tough environments.

In the Box

  • SecuGen U10 USB Fingerprint Sensor
