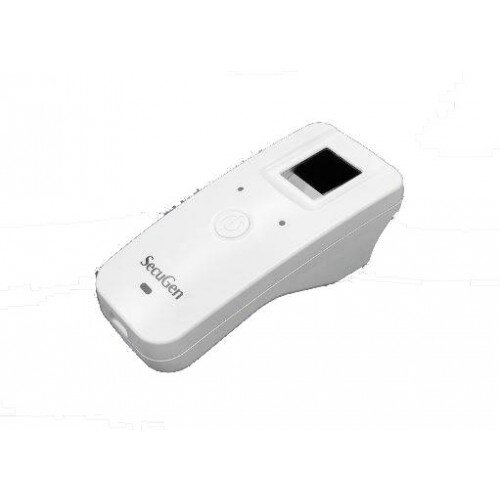

SecuGen Unity 20 Bluetooth Fingerprint Reader Price Worldwide

By: SecuGen

Model: HU20-ASF-BT

Sku: ZWUO5DCPGL

Availability: Out of stock New

Availability: Out of stock

  • Fingerprint Sensor: U20-A
  • User Capacity: Up to 700 users (1,400 templates) (1:1 and 1:N)
  • Image Resolution: 500 DPI
  • Image Size: 300 x 400 pixels
  • Platen Size: 18.2 mm x 22.9 mm
  • Sensing Area: 15.2 mm x 20.3 mm
  • Image Gray Scale: 256 levels (8-bit)
  • Light Source: LED
  • Smart Capture Speed: 0.2 ~ 0.5 seconds
  • Biometric Standards/Specs: INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, FIPS 201, FBI (PIV, Mobile ID FAP 20), NIST MINEX, WSQ
  • Bluetooth: Class 2 Module, Dual-mode Bluetooth / Low Energy (BLE) radio, Fully qualified Bluetooth 4.0, Supports 802.11 coexistence
  • Battery: Rated Capacity: 1000 mAh, Internal Resistance: ≤70 mΩ, Voltage: 4.2 V (charged), 2.75 V (discharge cut-off)
  • USB Interface: For charging
  • Temperature: Operating: -10°C ~ 60°C, Charging: 10°C ~ 45°C
  • Operating Humidity: 90% or less RH, noncondensing
  • Supply Voltage: Built-in battery or 5V DC (via USB)
  • Current Consumption: 200 mA (max, operating), 500 mA (max, charging & operating)
  • Compliance: FCC, CE, KC, RoHS, WHQL
Stock Request Notify When Available

Unity 20 Bluetooth

Unity 20 Bluetooth is the world’s first elegantly designed, low cost, fully programmable Bluetooth fingerprint reader. Featuring a sleek wireless design with a premium FBI certified fingerprint sensor, the Unity 20 Bluetooth can securely transfer fingerprint data wirelessly to mobile devices for convenient biometric authentication, identification and enrollment.

Thoughtful Design

Unity 20 Bluetooth can be used together with an Apple iOS or Android mobile device (such as iPhone, iPad, smartphone or tablet) to scan, enroll, and authenticate users without the need for cables or OTG adapters. The reader is built with the industry’s most rugged and patented optical fingerprint technology and yet is small enough to be carried in a pocket and held comfortably in one hand. It can also be used on the desktop with Bluetooth-enabled computers. Thoughtfully designed, the device works in either direction so you scan your finger or another person’s finger without having to turn the device around.

Advanced Features for Developers

Developers can use Unity 20 Bluetooth also right out of the box by calling the simple APIs of the pre-installed Fingerprint Management System (FMS) software. Alternatively, the device can be custom programmed using the built-in Linux development environment, MINEX-compliant fingerprint algorithms, OpenSSL cryptography libraries, and 1 GHz CPU. For stronger security, the device can also store encrypted fingerprint templates and process them in a closed environment without ever leaving the device. It also provides high-speed fingerprint matching in either verification mode (1:1) or identification mode (1:N), using the built-in SecuSearch Engine. More information about the capabilities and internal components

Benefits of Using SecuGen Fingerprint Readers

SecuGen fingerprint readers are easy to use and can be installed quickly on any Windows PC. Backed by the industry’s best warranty, years of field use and proven reliability under extreme conditions, SecuGen fingerprint readers provide consistent performance and security for a growing number of software applications for desktop, mobile, network, enterprise and Internet environments.

When used for biometric authentication as part of an overall security program, SecuGen fingerprint readers can help reduce the hassles of password overload, decrease the risks of security breaches, improve accountability and add true non-repudiation, all while making it more convenient and intuitive for any user.

Look to SecuGen for advanced, fingerprint biometric technologies that let your fingerprints act like digital passwords that cannot be lost, forgotten or stolen.

  • High-performance, maintenance-free optical fingerprint sensor
  • Rugged fingerprint sensor resistant to scratches, impact, vibration and electrostatic shock
  • Auto-On – automatic finger detection technology
  • Smart Capture – high quality fingerprint scanning of difficult fingers (dry, wet, scarred) in challenging environments and conditions such as under direct sunlight
  • Rechargeable lithium ion battery and micro USB cable for charging
  • Dual direction finger guide: for self-use or to scan other users by an administrator
  • Encryption of fingerprint templates (with SecuGen Proprietary templates)

In the Box

  • SecuGen Unity 20 Bluetooth Fingerprint Reader
