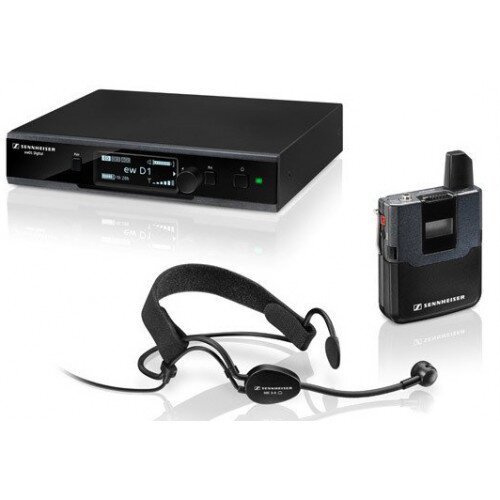

Sennheiser ew D1-ME 3 Wireless Headworn Microphone
Sennheiser ew D1-ME 3 Wireless Headworn Microphone Display Gallery Item 1
Sennheiser ew D1-ME 3 Wireless Headworn Microphone - 2 Display Gallery Item 2
Sennheiser ew D1-ME 3 Wireless Headworn Microphone - 3 Display Gallery Item 3
Sennheiser ew D1-ME 3 Wireless Headworn Microphone - 4 Display Gallery Item 4
Sennheiser ew D1-ME 3 Wireless Headworn Microphone - 5 Display Gallery Item 5

Sennheiser ew D1-ME 3 Wireless Headworn Microphone - Shop & Save Big!

By: Sennheiser

Model: EW D1-ME3

Sku: UBGDCQVITP

Be the first to review this product

Sign up for price alert

$571.99

Availability: In Stock In Stock

New

  • SK D1: Microphone: Frequency response: 50 to 20,000 HzMax. input level: 2.2 V RMS
  • Battery Specification: 2 x AA size battery (1,5V), Operating time: typ. 6 h
  • Line: Frequency response: 20 to 20,000 HzMax. input level: 3.3 V RMS
  • Input impedance: 1 MΩ
  • Input sensitivity: automatic sensitivity adjustment
  • RF output power: adaptive up to 100mW, 10mW fix (country-specific)
  • Connection: 3.5 mm jack socket, lockable
  • Accupack: BA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h
  • ME 3 II: Microphone: pre-polarized condenser, Max. sound pressure level: 150 dB SPL, Pick-up pattern: cardioid, Sensitivity: 1.6 mV/Pa
  • System: THD, total harmonic distortion: typ. < 0,1 %
  • RF frequency range: 2,400 to 2,483.5 MHz
  • Transmission method: TDMA, time diversity, frequency diversity, fast switching antenna diversity
  • Storage temperature: Storage: – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
  • Modulation: GFSK with back channel
  • Operating temperature: Operation: – 10 °C to +55 °C
  • Dynamic range: > 135 dB (A)
  • Latency: 3.9 ms
  • Audio sampling: 24 bit/48 kHz
  • Audio codec: APT-X Live
  • Signal-to-noise ratio: ≥ 105 dB (A)
  • AF frequency response: 20 to 20.000 Hz
  • EM D1: Antenna connector: 2 x Rev-SMA
  • Automatic gain control (AGC): compression/expansion with automatic make-up gain function
  • Audio output: Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
  • Current consumption: 350 mA
  • Display: OLED
  • Low-cut filter: –3 dB at 120 Hz
  • Network socket: RJ45
  • RF sensitivity: <-90 dBm
  • Network protocol: Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6
  • Connection: XLR/¼" (6.3 mm) jack
  • RF output power: Back channel 10mW/100mW (country-specific)
  • Equalizer: 7-band graphic equalizer
  • Power supply: 12 V DC hollow jack
Quantity:
  • Add to Wishlist
  • Add to Compare

evolution wireless D1 Headmic-Set with ME 3-II headmic for live stage use.

evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

  • Lightweight and robust: headset microphone for excellent speech intelligibility
  • Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
  • Automatic frequency management
  • Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
  • Audio effects: equalizer, de-esser, automatic gain control
  • iOS app for remote control and monitoring of the system
  • Sturdy metal housing

In the Box

  • Sennheiser ew D1-ME 3 Wireless Headworn Microphone
  • EM-D1 rackmount receiver
  • SK-D1 bodypack transmitter
  • ME 3-II headset microphone
  • NT-12 power supply
  • Transport Case
  • User Manual
