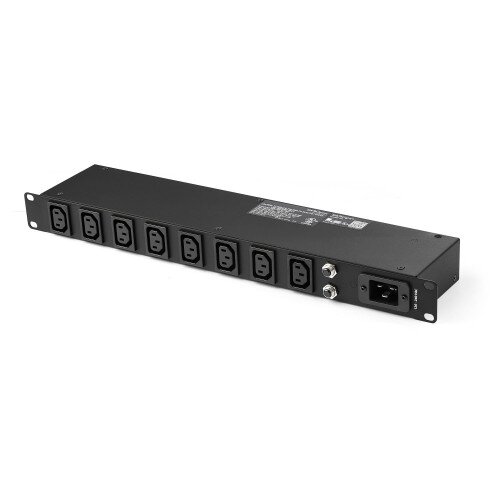

StarTech 1U 19" 8-Port Rack Mount PDU
StarTech 1U 19" 8-Port Rack Mount PDU Display Gallery Item 1
StarTech 1U 19" 8-Port Rack Mount PDU - 2 Display Gallery Item 2
StarTech 1U 19" 8-Port Rack Mount PDU - 3 Display Gallery Item 3
StarTech 1U 19" 8-Port Rack Mount PDU - 4 Display Gallery Item 4
StarTech 1U 19" 8-Port Rack Mount PDU - 5 Display Gallery Item 5

StarTech 1U 19" 8-Port Rack Mount PDU - Shop Now and Save!

By: StarTech

Model: PDU08C13H

Sku: 9GINIRVPPE

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Connector(s): Input Connector(s): 1 - IEC C20 (16A, 3 conductor) Power, Output Connectors: 8 - IEC C13 (10A, 3 conductor) Power Receptacle
  • Environmental: Operating Temperature: -5°C to 45°C (23°F to 113°F), Storage Temperature: -25°C to 65°C (-13°F to 149°F), Humidity: 0% RH
  • Hardware: Form Factor: Horizontal Number of Power Outlets: 8 Rack-Mountable: Yes
  • Maximum Total Current: 20A Maximum Total Current Draw per Phase: 20A
  • Regulatory Derated Input Current (North America): 16A, Nominal Input Voltage: 110V - 240V, Nominal Output Voltage: 110V - 240V
  • Maximum Output Voltage: 240V, Load Capacity: 1920 VA
  • General Specifications: Surge Protection: 3600 Joules, Phase Power: Single phase power adapter, Power Cord Included: 10 ft [3 m] C19 to NEMA5-20p
  • Input Voltage: 110V-240V AC, Output Voltage: 20V DC
  • Special Notes / Requirements: Note: To support 240V a different C19 power cable will need to be sourced to support the higher voltage.
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • 8 POWERFUL NEMA C13 OUTLETS: Rack mount PDU provides up to 16A/120V (1920VA) or 20A/240V (4800 VA) for servers & equipment; 1U rack space for easy accessibility; 10ft/3m C19 to NEMA5-20p cord incl.
  • 3600 JOULE CIRCUT PROTECTION: Built-in resettable circuit breaker that acts as a surge protector or shields from unintentional overloads in data center; Safety listed for performance and peace of mind
  • CONFIGURABLE EIA-310D COMPLIANT DESIGN: Installable in standard 19in. 2 or 4 post rack using incl. cage nuts/screws; C20 power cord allows any local plug config for 120 or 240 V single phase in/out
  • SPECS: 1U 19in. Horizontal PDU | 8x IEC C13 Pwr out | C20 Pwr input (1 phase) | Load cap. 120V/16A (1920VA) |Load cap. 240V/20A (4800VA) | 3600 J surge sup. w/breaker |EIA-310D |Mounting H.W. incl.

This rack-mount PDU features eight C13 outlets and you can install it into 1U of rack space to power your rack-mount equipment. The PDU provides 16 amps of power to be shared across the eight outlets.

Sleek, professional installation

Unlike some rack power solutions that mount awkwardly, if at all, this rack-mount PDU is EIA-310D compliant, which ensures a secure and tidy installation into any 19" rack with 1U of available space. Mounting screws and cage nuts are also included to ensure you have everything you need, saving you time and hassle.

Flexible power solution

For maximum compatibility with your devices, this PDU features C13 outlets which are ideal for a wide range of globally distributed devices including I.T equipment, office equipment, measuring instruments and medical devices. Plus, with a total of eight C13 outlets, the PDU can distribute power to your entire rack.

Protects your equipment

The housing of this PDU is also constructed of rugged steel to provide maximum durability in any environment. The PDU08C13H is backed by a StarTech.com 2-year warranty and free lifetime technical support.

In the Box

  • StarTech 1U 19" 8-Port Rack Mount PDU
  • 10 ft [3 m] C19 to NEMA5-20p Power Cord
  • 4 - M5 screws
  • 4 - M5 cage nuts
