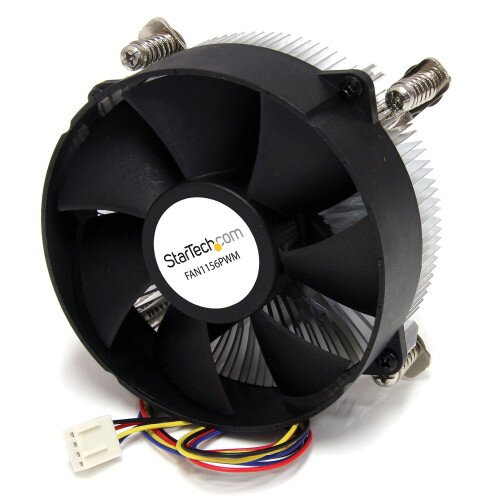

StarTech 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM
StarTech 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM Display Gallery Item 1
StarTech 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM - 2 Display Gallery Item 2
StarTech 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM - 3 Display Gallery Item 3

Discover StarTech 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM

By: StarTech

Model: FAN1156PWM

Sku: 38XK5C9YS2

Be the first to review this product

Sign up for price alert

$63.99

Availability: In Stock In Stock

New

  • 4-pin Pulse Width Modulation (PWM) motherboard connector
  • 95mm Ever Lubricate Bearing fan design
  • Aluminum heatsink construction
  • Connector(s): Connector Type(s): 1 - LP4 (4 pin, PWM)
  • Environmental: Operating Temperature -10°C ~ 70°C (14°F ~ 158°F), Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F), Humidity: 0 ~ 65% RH
  • Hardware: Number of Conductors: 4, Fan Dimensions (Number / Dimensions): 95mm x 95mm x 25mm, Fan Bearing Type: Ever Lubricate Bearing, Heatsink Type: Aluminum, Heatsink Dimensions: 95mm x 95mm x 20mm
  • Performance: Fan RPM: 1000 ~ 3000 RPM, Air Flow Rate: 65.61 (max) CFM, Noise Level: (33 dBA, MTBF: 40,000 Hours
  • Power: Input Voltage: 12V DC, Input Current: 350 mA
  • Special Notes / Requirements: System and Cable Requirements: Socket LGA1156/LGA1155 motherboard
Quantity:
  • Add to Wishlist
  • Add to Compare

The FAN1156PWM CPU Cooler with PWM Cooling Fan for Socket LGA1156/1155 systems provides reliable and efficient cooling for compatible Intel Core i3/i5/i7 CPUs.

With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.

Applications

Computer systems where the cooling fan does not need to run at full speed all the time, for lower power consumption and noise

Replace a noisy or failed CPU cooler for an LGA1156/1155 system

Install an energy-efficient CPU cooler for a build/upgrade for the following system CPUs:

LGA1156: Core i3 530~560 Core i5 650~760, 655K, 750S Core i7 860~880, 860S, 870S, 875K

LGA1155: Core i3 2100, 21020, 2100T Core i5 2300~2500, 2390T, 2400S, 2500K, 25000S, 2500T Core i7 2600, 2600K, 2600S

In the Box

  • StarTech 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM
  • Packet of thermal compound
  • Backing Plate
