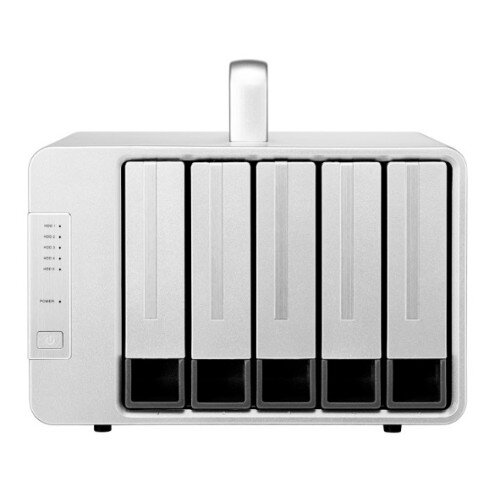

TerraMaster D5 Thunderbolt 3 5-Bay RAID Enclosure - Shop Now and Save!

By: TerraMaster

Model: D5 Thunderbolt 3

Sku: 7J9MOFRH1O

$784.99

Availability: In Stock In Stock

New

  • Disk Slot Number: 5
  • Compatible Disk Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
  • File System: NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
  • Maximum Internal Raw Capacity: 80TB (16 TB drive x 5) (Capacity will vary along with the RAID type)
  • RAIDs Supported: SINGLE DISK,JBOD,RAID 0,RAID 1,RAID5,RAID10 / Note: Mac 0S computers do not support RAlD online expansion and migration.
  • Hardware RAID: Yes
  • RAID Manager Software: Yes
  • RAID Online Expansion: Yes
  • RAID Migration: Yes
  • RAID Auto-rebuilding: Yes
  • Drive Hot Swap: Yes
  • HDD Sleep: Yes
  • HDD S.M.A.R.T. Inspection: Yes
  • Sector Inspection and Parity Check: Yes
  • SSC Cache: Yes
  • Daisy Chain: Yes
  • HDD NCQ Technology: Yes
  • Alert Notice: Yes
  • Event Log: Yes
  • Thunderbolt Data Transmission: 40Gb Thunderbolt 3
  • Thunderbolt Daisy Chain: 40Gb Thunderbolt 3
  • USB Host: USB 3.1 Gen2 host (Use to connect USB storage device)
  • DP Interface: DP 1.4
  • Power Socket: DC IN 12V
  • Reading Speed (max.): Read: 1035MB/sec(Use HDD under RAID 0 mode) / Read: 830MB/sec(Use HDD under RAID 5 mode)
  • Writing Speed (max.): Write: 917MB/sec(Use HDD under RAID 0 mode) / Write: 850MB/sec(Use HDD under RAID 5 mode)
  • System fan: 80 mm x 80 mm x25mm (x 2)
  • Fan mode: Smart
  • Noise Level: 19.8dB(A)
  • Power Supply: 120W
  • AC Input Voltage: 100V to 240V AC
  • Current Frequency: 50/60 HZ, Single Phase
  • Power Consumption: 76.8W(Access)
  • Working Temperature: 5°C ~ 40°C (40°F ~ 104°F)
  • Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
  • Relative Humidity: 5% ~ 95% RH
  • Supported OS: Windows OS、Mac OS
  • Certificate: CE, FCC, CCC, KC
  • Environment: RoHS compliance
Quantity:
  • Add to Wishlist
  • Add to Compare

Large Storage Capacity

TerraMaster’s 5-bay D5 Thunderbolt9 3 is compatible with 3.5" SATA disks and 2.5" SSDs, allowing professionals to capitalise on a total storage capacity of up to 90TB. As a result, you can be assured the device gives you the tools you need to overcome any storage challenge.

Lightning Speed!

The D5 Thunderbolt 3 is equipped with a 40-Gbps lightning speed interface, and the read and write support attains speeds of up to 1,035 MB/s (test conditions: 5 HDDs, RAID 0 mode). The device is compatible with daisy chaining across multiple Thunderbolt 3 devices, and each one can be realized using the Thunderbolt interface.

Dedicated DP Interface

Given its HD DP digital interface, video editors can connect the D5 Thunderbolt 3 to a 4K HD display to satisfy their needs.

Multi-Screen Display

Capitalising on the Thunderbolt 3 and DP interfaces, the D5 Thunderbolt 3 supports multi-screen display with up to 3 screens. This is an ideal solution for multitaskers, especially when efficiency is the end goal.

Multiple RAID Supports

The D5 Thunderbolt 3 can operate with RAID 0, 1, 5, and 10, as well as JBOD disk array modes for all your application needs. This underpins the all-important concern for guaranteed data security, and it ensures that your storage capacity is utilised in the most efficient way possible.

Professional and Safe

Replacing lost content is inconvenient, costly, and, ultimately, unworkable for all professionals. Therefore, with the D5 Thunderbolt 3, TerraMaster has not comprised on its use of state-of-the-art storage technologies to ensure data safety and security. Now, freed from concerns about inadequately protected data, users can focus on what matters to you.

The Ideal Companion for All Professionals

Given its compactness, its large storage capacity, and its lightning speed, the D5 Thunderbolt 3 is ideally suited for the most demanding applications, including 4K video editing, as well as seamless 4K streaming. Other users, especially those with strict speed and storage requirements, will find a valuable partner in this device.

Authoritative Quality Certification

Both Apple and Intel have certified the D5 Thunderbolt 3’s design and performance, ensuring the device’s consistent performance and reliability.

In the Box

  • TerraMaster D5 Thunderbolt 3 5-Bay RAID Enclosure
  • Power Cord
  • Thunderbolt 3 Cable (40Gbps) 0.8 Meter
  • Quick Installation Guide
  • Power Adapter
  • Screws (Several)
