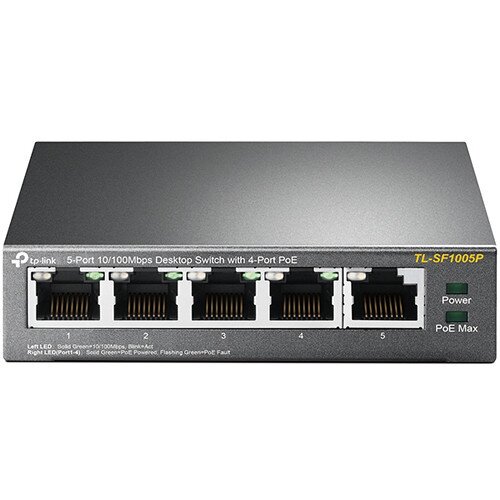

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE Display Gallery Item 1
TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE - 2 Display Gallery Item 2
TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE - 3 Display Gallery Item 3
TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE - 4 Display Gallery Item 4

Discover TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

By: TP-Link

Model: TL-SF1005P

Sku: RUYY7Q6OEN

Be the first to review this product

Sign up for price alert

$56.99

Availability: In Stock In Stock

New

  • 5 10/100Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • Supports PoE Power up to 15.4W for each PoE port
  • Supports PoE Power up to 58W for all PoE ports
  • Requires no configuration and installation
  • External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
  • Interface: 5 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
  • PoE Ports (RJ45): Standard: 802.3af (15.4W), PoE Ports: Port1- Port4, Total PoE Budget: 58W
  • Mac Address Table: 2K
  • Switching Capacity: 1Gbps
  • Transmission Distance: Store-And-Forward
  • Operating Temperature: 0?~40? (32?~104?)
  • Storage Temperature: -40?~70? (-40?~158?)
  • Operating Humidity: 10%~90%RH non-condensing
  • Storage Humidity: 5%~90%RH non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare

Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.

Sturdy Metal Casing

Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

In the Box

  • TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
  • Power Adapter
  • User Guide
