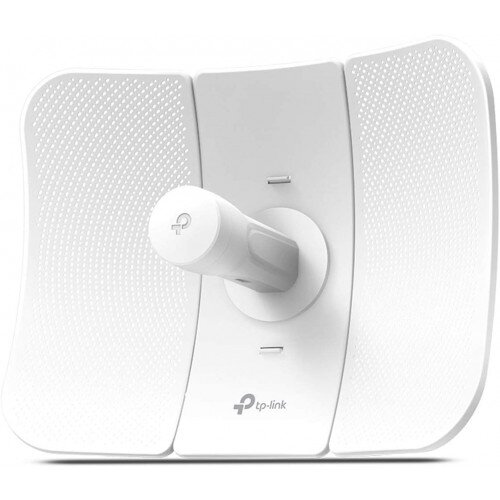

TP-Link 5GHz AC 867Mbps 23dBi Outdoor CPE
TP-Link 5GHz AC 867Mbps 23dBi Outdoor CPE Display Gallery Item 1
TP-Link 5GHz AC 867Mbps 23dBi Outdoor CPE - 2 Display Gallery Item 2

TP-Link 5GHz AC 867Mbps 23dBi Outdoor CPE - Shop Now and Save!

By: TP-Link

Model: CPE710

Sku: EOJAJSBZD3

Be the first to review this product

Sign up for price alert

$89.99

Availability: In Stock In Stock

New

  • 802.11ac for up to 867Mbps on 5GHz wireless data rate
  • 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation
  • Interface: 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE), 1 Reset Button
  • Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins), Voltage range: 16-27V DC
  • Enclosure: Material: Outdoor PC stabilized plastic, Weatherproof: IP65 water and dust proof design
  • Wireless Standards: IEEE 802.11a/n/ac
  • Frequency: 5.15~5.85 GHz
  • System-level Optimizations: Optimized IGMP Snooping / Proxy for multicast applications
  • Input: 100-240VAC, 50/60Hz
  • Output: 24VDC, 0.5A Max, +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
  • Efficiency: > 84.29%
Quantity:
  • Add to Wishlist
  • Add to Compare

Blazing Speed without Wait

256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Pharos Control – Centralized Management System

CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.

In the Box

  • TP-Link 5GHz AC 867Mbps 23dBi Outdoor CPE
  • 24V 0.5A Passive PoE Adapter
  • Pole Mounting Kits
  • AC Power Cord
  • Installation Guide
