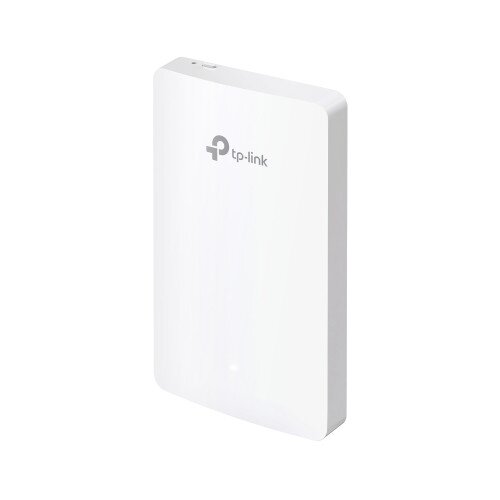

TP-Link AX1800 Wall Plate WiFi 6 Wireless Access Point
TP-Link AX1800 Wall Plate WiFi 6 Wireless Access Point Display Gallery Item 1
TP-Link AX1800 Wall Plate WiFi 6 Wireless Access Point - 2 Display Gallery Item 2
TP-Link AX1800 Wall Plate WiFi 6 Wireless Access Point - 3 Display Gallery Item 3

TP-Link AX1800 Wall Plate WiFi 6 Wireless Access Point Price Worldwide

By: TP-Link

Model: EAP615-WALL

Sku: L4K2MW72BT

Be the first to review this product

Sign up for price alert

$105.99

Availability: In Stock In Stock

New

  • New Experience of Room Coverage with WiFi 6
  • MU-MIMO
  • OFDMA
  • BSS Coloring
  • High-Efficiency WiFi 6
  • Seamless Roaming
  • Band Steering
  • Hardware or Software Controllers
  • Centralized Cloud Management
  • Intelligent Monitoring: Interface Uplink: 1× 10/100/1000 Mbps Ethernet Port, Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
  • Physical Security Lock: Yes
  • Button: Reset
  • Power Supply: 802.3af/at PoE
  • Max. Power Consumption: EU: 10W (802.3at PoE, PoE Out off), US: 11.5W: (802.3at PoE, PoE Out off)
  • Antenna 2 Dual-Band Antennas: 2.4 GHz: 2× 3 dBi, 5 GHz: 2× 4 dBi
  • Mounting: Wall Plate Mounting
  • Coverage: 50 (600 ft )
  • Concurrent Clients: 120+
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate: 5 GHz: Up to 1201 Mbps, 2.4 GHz: Up to 574 Mbps
  • Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Seamless Roaming, Beamforming, MU-MIMO, Rate Limit, Load Balance, Airtime Fairness, Band Steering, Reboot Schedule, Wireless Schedule, RADIUS Accounting, MAC Authentication, Wireless Statistic, Static IP/Dynamic IP
  • Wireless Security: Captive Portal Authentication
Quantity:
  • Add to Wishlist
  • Add to Compare

High-Performance Connectivity

Guarantee higher network efficiency and lower latency.

Four Gigabit Ports

4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.

Centralized Management

Integrates into Omada SDN for cloud access and remote management.

Secure Guest Network

Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Easy Installation and PoE Support

Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Superior WiFi 6 Speeds

Meet the demands for smoother online activities and more device connections. The latest 802.11ax technologies* such as 1024 QAM and Long OFDM Symbol allows the EAP to boost overall speeds up to 1775 Mbps, Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

Seamless Integrated into Omada SDN Platform

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

More than Speed, Security Matters

Safeguard your network and data against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

Secure Guest Network with Up to 16 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Guest Network with Facebook Wi-Fi and SMS Login

Captive portal (including SMS, Facebook Wi-Fi, Voucher)

In the Box

  • TP-Link AX1800 Wall Plate WiFi 6 Wireless Access Point
  • Installation Guide
  • Mounting Kits
