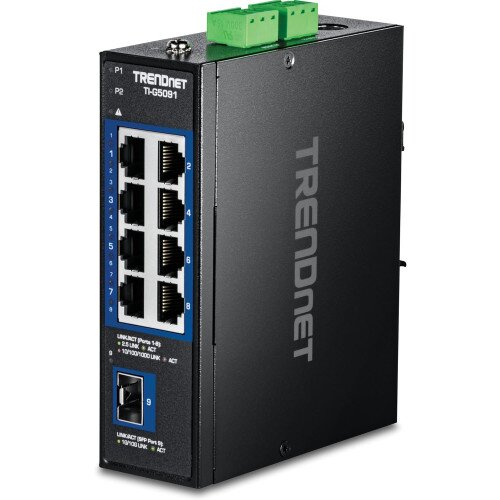

TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port
TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port Display Gallery Item 1
TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port - 2 Display Gallery Item 2
TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port - 3 Display Gallery Item 3
TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port - 4 Display Gallery Item 4
TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port - 5 Display Gallery Item 5

Discover TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port

By: TRENDnet

Model: TI-G5091

Sku: SL709E8RJ9

Be the first to review this product

Sign up for price alert

$324.99

Availability: In Stock In Stock

New

  • Version v1.0R
  • 8 x 2.5G ports
  • 10G SFP+ port
  • Hardened IP50 rated metal switch
  • Extreme -40° – 75° C (-40° – 167° F) operating temperature range
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • 60Gbps switching capacity
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz
  • Device Interface: 8 x 2.5G ports (10Mbps/100Mbps/1000Mbps/2.5Gbps) , 10G SFP+ port (1000Mbps/10Gbps), 3-pin power terminal block, 3-pin alarm relay terminal block, Power port, LED indicators, Grounding point
  • Data Transfer Rate: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit Ethernet: 2000Mbps (full duplex), 2.5G Ethernet: 5Gbps (full duplex), 10G SFP+: 20Gbps (full duplex)
  • Performance: Data RAM Buffer: 1MB, Switching Fabric: 60Gbps, MAC Address Table: 4K entries, Jumbo Frame: 12KB, Forwarding Rate: 44.64Mpps (64-byte packet size)
  • Hardened components rated for extreme temperatures
  • Dual power inputs
  • Auto negotiation
  • Support VLAN pass through
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 6kV protection
  • Power: Input: 9 - 60V DC, Compatible power supply: TI-M6024 (sold separately), Compatible power adapter: 48VDC3000 (sold separately) Max. consumption: 14W
  • Terminal Block: 3-pin terminal block, Wire range: 2.5mm^2, Solid wire (AWG): 16-28, Stranded wire (AWG): 16-28, Torque: 3 lb. – In / 0.3Nm / 0.33Nm, Wire strip length: 7-8mm
  • Alarm Relay Contact: Relay outputs with current carrying capacity of 1A, 24V DC, Short circuit mode when two power sources are connected, Open circuit mode when only one power source is connected
  • MTBF: 615,965 hours
  • Housing: IP50 metal case, DIN-Rail mount, Wall mount
  • Operating Temperature: - 40° – 75° C (-40° – 167° F)
  • Operating Humidity: Max. 95% non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare

TRENDnet’s 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port, model TI-G5091, features a rugged IP50 rated metal enclosure and is designed to work in the harshest networking environments. This industrial 2.5G switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection, and a power failure alarm relay minimize network downtime. This industrial multi-gig switch features 2.5G RJ-45 ports for high-speed device connections, and a 10G SFP+ port for backbone fiber networking applications.

Multi-Gigabit Ports

This industrial 2.5G switch features 2.5G RJ-45 ports for high-speed device connections, and a 10G SFP+ port that support high-speed and long-distance fiber networking applications.

Redundant Power

Multiple power inputs provide redundant power with overload current protection on this industrial multi-gig switch, minimizing overall network downtime (power supply sold separately).

Industrial Hardened Design

Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (-40° – 167° F).

Multi-Gigabit Ports

The industrial 2.5Gb Ethernet switch features 2.5G RJ-45 ports for high-speed device connections, and a 10G SFP+ port that supports long-distance fiber networking applications

DIN-Rail / Wall Mounts

IP50 rated metal enclosure with included DIN-Rail mount and wall mount hardware

Redundant Power

Multiple power inputs on the industrial 2.5G switch provide redundant power with overload current protection (power supply sold separately, models: TI-M6024, 48VDC3000)

Alarm Relay

Alarm relay on the industrial 2.5G switch is triggered by power failure of primary and/or redundant power

Jumbo Frame

Supports larger packets, or Jumbo Frames (up to 12KB), for increased performance

Extreme Temperature Range

Operating temperature range of -40° – 75° C (-40° – 167° F) allows for the installation of the industrial 2.5G switch in environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 1kV, (61000-4-5) Surge: Power: L-G 2kV/L-L 1KV | Signal: 2kV

Grounding Point

Grounding point for high voltage protection

Switching Capacity

60Gbps switching capacity

LED Indicator

LED Indicators on the industrial 2.5G switch convey port status

In the Box

  • TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port
  • Removable Terminal Blocks
  • DIN-Rail / Wall Mount kit
  • Quick Installation Guide
