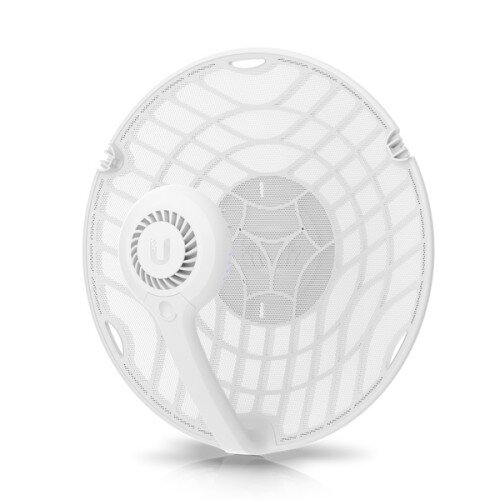

Ubiquiti airFiber 60 LR Network Antenna
Ubiquiti airFiber 60 LR Network Antenna Display Gallery Item 1
Ubiquiti airFiber 60 LR Network Antenna - 2 Display Gallery Item 2
Ubiquiti airFiber 60 LR Network Antenna - 3 Display Gallery Item 3
Ubiquiti airFiber 60 LR Network Antenna - 4 Display Gallery Item 4
Ubiquiti airFiber 60 LR Network Antenna - 4 Display Gallery Item 5
Ubiquiti airFiber 60 LR Network Antenna - 5 Display Gallery Item 6
Ubiquiti airFiber 60 LR Network Antenna - 6 Display Gallery Item 7
Ubiquiti airFiber 60 LR Network Antenna - 7 Display Gallery Item 8

Ubiquiti airFiber 60 LR Network Antenna - Shop Now and Save!

By: Ubiquiti

Model: AF60-LR-US

Sku: HBYWCH870Q

Be the first to review this product

Sign up for price alert

$468.99

Availability: In Stock In Stock

New

  • Low-Interference 60 GHz Spectrum
  • Integrated GPS
  • Long Range, over 12 km
  • System: Maximum throughput: 1.95 Gbps, Maximum range: 12+ km, Encryption WPA2-PSK (AES)
  • Processor: Quad-Core ARM Cortex A7
  • Memory: 256 MB DDR3
  • Networking interface: GbE RJ45 port
  • RF: Connections Internal
  • Max. Power Consumption : 18W
  • Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8- )
  • Supported Voltage Range : 48VDC ± 10%
  • ESD/EMP Protection: Air/Contact: ± 24kV
  • LEDs: Power: Flashing white: bootup in progress, White: not connected to UISP console, Blue: connected to UISP console, Ethernet: Flashing blue: ethernet activity, GPS: Blue: receiving at least (4) GPS satellite signals, 60G: Blue: active connection
  • Software: OS: airOS, Operating mode: PtP only, Ubiquiti specific features : Integrated 60 GHz radio, discovery protocol, Wave technology, Network: Bridge mode
  • RF: Operating Frequency 57 to 71 Ghz, Depends on regulatory region. GPS: Yes, Channel Bandwidth: 2160, 1080 MHz
Quantity:
  • Add to Wishlist
  • Add to Compare

Long-range 60 GHz PtP radio system powered by Wave Technology.

The airFiber 60 LR uses Wave Technology to establish links over 12 km and can reach a 1.9 Gbps maximum throughput rate. It also has a dedicated Bluetooth management radio so it can be set up quickly and fully configured with the UISP® application (web/mobile). It can also be seamlessly integrated into an existing deployment with Ubiquiti’s dedicated link planning platform and tracked from anywhere with its built-in GPS antenna.

In the Box

  • Ubiquiti airFiber 60 LR Network Antenna
  • Precision Alignment Pole Mount
  • Gigabit PoE Adapter (48V, 0.65A)
  • Power Cord
