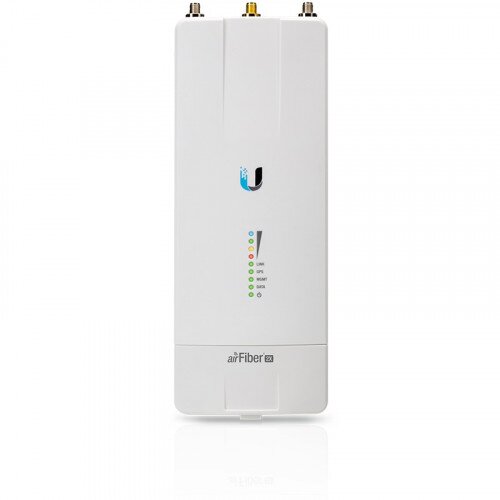

Ubiquiti airFiberX Carrier Backhaul Radio Price Worldwide

By: Ubiquiti

Sku: PUPQP98J65

$519.99

$831.99

$415.99

$642.99

$519.99

Availability: In Stock In Stock

New

  • GPSExternal, Magnetic Base
  • Operating Frequency2.4GHz
  • Power MethodPassive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
  • Maximum Power Consumption17W Max. Power/Duty Cycle
  • Supported Voltage Range19-29VDC
  • Operating Temperature-40 to 55° C (-40 to 131° F)
  • Data Port(1) 10/100/1000 Ethernet Port
  • Configuration Port(1) 10/100 Ethernet Port
  • ProcessorINVICTUS IC
  • Maximum Throughput525 Mbps
  • Maximum Range200+ km
  • Encryption128-bit AES
  • Operating SystemairOS F
  • Frequency Accuracy± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization
Quantity :

Carrier Backhaul Radio

The airFiber X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.

Engineered for Performance

Ubiquiti’s INVICTUS custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.

Deployment Flexibility

The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket link that uses a RocketDishRD‑5G30/RD‑5G34* antenna.

Optimal Operation and Channel Configuration

Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

In the Box

  • Ubiquiti airFiberX Carrier Backhaul Radio
  • GPS Antenna Mount
  • External GPS Antenna
  • Metal Strap
  • Cable Ties (Qty. 2)
  • airFiber PoE Adapter with Mounting Bracket (24V, 1A)
  • Power Cord
  • Quick Start Guide
