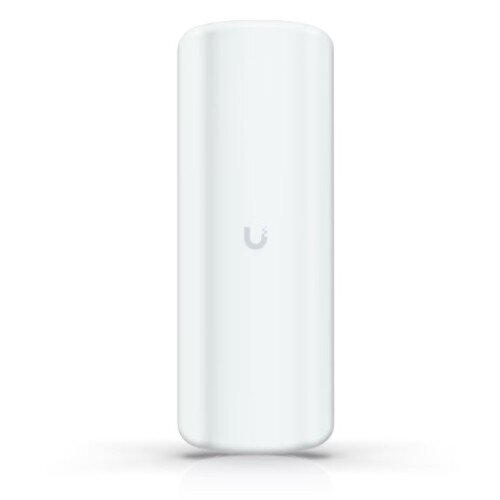

Ubiquiti Device Bridge Pro Sector
Ubiquiti Device Bridge Pro Sector Display Gallery Item 1
Ubiquiti Device Bridge Pro Sector - 2 Display Gallery Item 2
Ubiquiti Device Bridge Pro Sector - 3 Display Gallery Item 3
Ubiquiti Device Bridge Pro Sector - 4 Display Gallery Item 4
Ubiquiti Device Bridge Pro Sector - 5 Display Gallery Item 5

Ubiquiti Device Bridge Pro Sector - Shop Now and Save!

By: Ubiquiti

Model: UDB-Pro-Sector

Sku: ZCSP1SNOI6

Be the first to review this product

Sign up for price alert

$254.99

Availability: In Stock In Stock

New

  • WiFi Standard: WiFi 5
  • Spatial Streams: 2
  • Coverage Area: 5 km (3.1 mi)
  • Mounting Locations: Pole
  • Weatherproofing: IPX6
  • Power Method: PoE
  • Max. Power Consumption: 6W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: GbE RJ45 port
  • Antennas: Internal
  • Management: Ethernet, WiFi
  • Wind Loading: 128.2N at 200 km/h
  • Mount Material: UV-stabilized polycarbonate, stainless steel
  • Enclosure Material: UV-stabilized polycarbonate
  • Pole Mount Diameter: 0.9—2.4" (24—60 mm)
  • Button: Factory-reset
  • LEDs: System: Power, Ethernet
  • Channel Bandwidth: 20/40 MHz
  • NDAA Compliant: Yes
  • Certifications: CE, FCC, IC
  • Operating Frequency: US/CA: U-NII-1 5150 - 5250 MHz, U-NII-2A 5250 - 5350 MHz, U-NII-2C 5470 - 5725 MHz, U-NII-3 5725 - 5850 MHz / Worldwide: 5150 - 5875 MHz
  • Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • Performance: MIMO: 5 GHz: 2 x 2 / Max. Data Rate: 5 GHz: 400 Mbps (BW40) / Antenna Gain: 5 GHz: 17 dBi / Max. TX Power: 5 GHz: 25 dBm, Max. Conducted TX Power: 25 dBm (Combined) / Supported Data Rates: 802.11ac (WiFi 5): 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40), 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40), 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, Wireless Security: WPA2 AES (Always On)
Quantity:
  • Add to Wishlist
  • Add to Compare

5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.

In the Box

  • Ubiquiti Device Bridge Pro Sector
