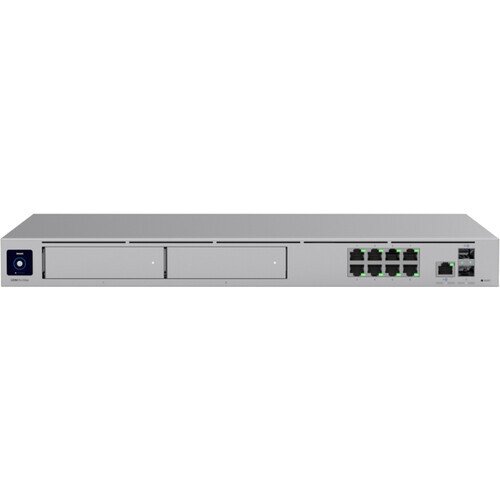

Ubiquiti Dream Machine Pro Max
Ubiquiti Dream Machine Pro Max Display Gallery Item 1
Ubiquiti Dream Machine Pro Max - 2 Display Gallery Item 2
Ubiquiti Dream Machine Pro Max - 3 Display Gallery Item 3
Ubiquiti Dream Machine Pro Max - 4 Display Gallery Item 4

Ubiquiti Dream Machine Pro Max - Shop Now and Save!

By: Ubiquiti

Model: UDM-PRO-MAX

Sku: CFD1NNVSPI

Be the first to review this product

Sign up for price alert

$702.99

Availability: In Stock In Stock

New

  • Enclosure material: Aluminium CNC, SGCC steel, Mount material: SGCC steel
  • Processor: Quad-core ARM Cortex-A57 at 2.0 GHz, System memory: 8 GB DDR4
  • On-board storage: 32 GB eMMC, Integrated 128 GB SSD, Management interface: Ethernet, Bluetooth
  • Networking interface LAN: (8) GbE RJ45 ports, (1) 10G SFP+ port, WAN: (1) 2.5 GbE RJ45 port, (1) 10G SFP+ port
  • IDS/IPS throughput: 5 Gbps*, Power method: Universal AC input, 100—240V AC, 2A Max., 50/60 Hz, USP-RPS DC input, 11.5V DC, 8.7A
  • Power supply: AC/DC, internal, 100W, Supported voltage range: 100—240V AC, Max. power consumption: 60W
  • ESD/EMP protection Air: 15kV, contact: 8kV, LCM display: 1.3" touchscreen, Button: Factory reset
  • Ambient operating temperature: -10° to 40° C (14° to 104° F), Ambient operating humidity: 5 to 95% noncondensing, Certifications: CE, FCC, IC
  • Performance: Redundant WAN with failover and load balancing, WiFi QoS with UniFi APs, Application, domain, and country-based QoS, Application and device type identification, Additional internet failover with LTE Backup, Internet quality and outage reporting
  • Next-generation security: Application-aware firewall rules, Signature-based IPS/IDS threat detection, Content, country, domain, and ad filtering, VLAN/subnet-based traffic segmentation, Full stateful firewall
  • Advanced networking: License-free SD-WAN, WireGuard, L2TP and OpenVPN server, OpenVPN client, OpenVPN and IPsec site-to-site VPN, One-click Teleport and Identity VPN, Policy-based WAN and VPN routing, DHCP relay, Customizable DHCP server, IGMP proxy, IPv6 ISP support
  • LEDs: Ethernet: Green: link/activity, SFP+: Green: link/activity, HDD: White: disk activity, Amber: disk error, RPS Blue: ready
Quantity:
  • Add to Wishlist
  • Add to Compare
  • Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
  • Includes full UniFi application suite for device management
  • 5 Gbps routing with IDS/IPS
  • (1) 10G SFP+*, (8) GbE RJ45 LAN ports
  • (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
  • (2) 3.5" NVR HDD bays with RAID data protection
  • Built-in 128 GB SSD for NVR detection recordings
  • 1.3" touchscreen

In the Box

  • Ubiquiti Dream Machine Pro Max
  • Power Cable
  • Rack Mount Kit
  • Feet
