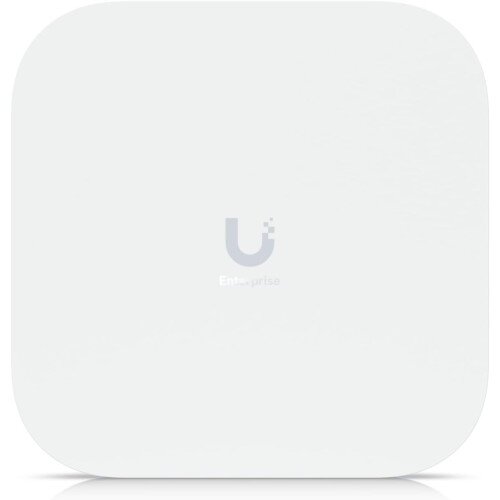

Ubiquiti E7 Campus Indoor/Outdoor Wireless Access Point
Ubiquiti E7 Campus Indoor/Outdoor Wireless Access Point Display Gallery Item 1
Ubiquiti E7 Campus Indoor/Outdoor Wireless Access Point - 2 Display Gallery Item 2
Ubiquiti E7 Campus Indoor/Outdoor Wireless Access Point - 3 Display Gallery Item 3
Ubiquiti E7 Campus Indoor/Outdoor Wireless Access Point - 4 Display Gallery Item 4
Ubiquiti E7 Campus Indoor/Outdoor Wireless Access Point - 5 Display Gallery Item 5
Ubiquiti E7 Campus Indoor/Outdoor Wireless Access Point - 6 Display Gallery Item 6
Ubiquiti E7 Campus Indoor/Outdoor Wireless Access Point - 7 Display Gallery Item 7

Discover Ubiquiti E7 Campus Indoor/Outdoor Wireless Access Point

By: Ubiquiti

Model: E7-Campus

Sku: O6TS11Y4LK

Be the first to review this product

Sign up for price alert

$941.99

Availability: In Stock In Stock

New

  • WiFi Standard: WiFi 7
  • Spatial Streams: 10
  • Coverage Area: 465 m² (5,000 ft²)
  • Max. Client Count: 1000+
  • Uplink : 10 GbE, 1 GbE
  • Mounting: Wall, Pole (Mounts), VESA (Optional)
  • Weatherproofing: IPX6, IP67 with Waterproof Door Kit
  • Power Method: PoE++
  • Performance: MIMO: 6 GHz: 4 x 4 (DL/UL MU-MIMO), 5 GHz: 4 x 4 (DL/UL MU-MIMO), 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) / Max. Data Rate: 6 GHz: 11.5 Gbps (BW320), 5 GHz: 8.6 Gbps (BW240), 2.4 GHz: 688 Mbps (BW40) / Antenna Gain: 6 GHz: Directional internal: 12 dBi, 90° x 50°, 5 GHz: Directional internal: 12 dBi, 100° x 55°, 2.4 GHz: Directional internal: 9 dBi, 90° x 80° / Max. TX Power: 6 GHz: 30 dBm, (36 dBm EIRP), 5 GHz: 30 dBm, 2.4 GHz: 23 dBm / Max. BSSIDs: 8 per Radio / Supported Data Rates: 802.11be (WiFi 7): 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) / 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) / 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) / 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
  • Wireless Meshing: Yes
  • Band Steering: Yes
  • 802.11v BSS Transition Management: Yes
  • 802.11r Fast Roaming: Yes
  • 802.11k Radio Resource Management (RRM): Yes
  • Zero-Wait DFS: Yes
  • Advanced Radio Management: Yes
  • Real-Time Spectral Analysis: Yes
  • Passpoint (Hotspot 2.0): Yes
  • Private Pre-Shared Key (PPSK): Yes
  • WiFi Speed Limiting: Yes
  • Client Device Isolation: Yes
  • WiFi Schedules: Yes
  • RADIUS over TLS (RadSec): Yes
  • Dynamic RADIUS-assigned VLAN: Yes
  • Max. Power Consumption: 4.4W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (1) 10 GbE RJ45 port, (1) GbE RJ45 port
  • PRISM RF Filtering
  • Wind Loading: 164.75 N at 200 km/h (37 lbf at 125 mph)
  • Pole Mount Diameter: 1–2.5" (25–63.5 mm)
  • Antennas: (1) Internal with directional patterns
  • Management: Ethernet
  • Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
  • Mount Material: Stainless steel, aluminum alloy
  • System: R/G/B
  • NDAA Compliant
  • Certifications: FCC, IC
  • Operating Frequency: US/CA: 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz, U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz / Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz, 5925 - 7125 MHz
  • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
Quantity:
  • Add to Wishlist
  • Add to Compare

Enterprise-grade indoor/outdoor access point with 10-stream tri-band WiFi 7 performance, PRISM active RF filtering technology, integrated directional antennas, a 10 GbE uplink, and a redundant GbE port for high availability.

In the Box

  • Ubiquiti E7 Campus Indoor/Outdoor Wireless Access Point
