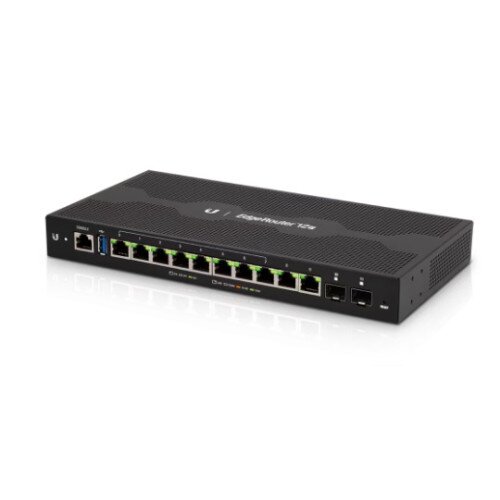

Ubiquiti EdgeRouter 12P - Shop Now and Save!

Model: ER-12P

Availability: Out of stock

Processor: 4-core 1 GHz MIPS64
System memory: 1 GB DDR3 RAM
On-board flash storage: 4 GB eMMC, 8 MB SPI NOR
Networking interface: (10) 10/100/1000 RJ45 ports, (2) 1 Gbps SFP ports
Management interface: (1) RJ45 serial port
PoE interface: (10) 24V passive PoE ports, 2-pair (Pins 4, 5+; 7, 8-)
Power method: AC/DC power adapter, 60W, 24V DC, 2.5A
Power supply: External AC/DC adapter
Supported voltage: range 9–30V DC
Max. power consumption: 20W (Excludes PoE output)
Passive PoE Max. wattage per port: 17W (24V)
Passive PoE voltage range: 20–30V
ESD/EMP protection: Air: ± 24 kV, contact: ± 24 kV
Button: Fctory reset
LEDs: System: power, Data ports: PoE, speed/link/activity, SFP port: link/activity
Ambient operating temperature: -10 to 40° C (14 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC

Stock Request Notify When Available

Router with a built-in Layer 2 switch, (10) Gigabit RJ45 ports, and (2) SFP ports, each equipped with a 24V, two-pair PoE output.
