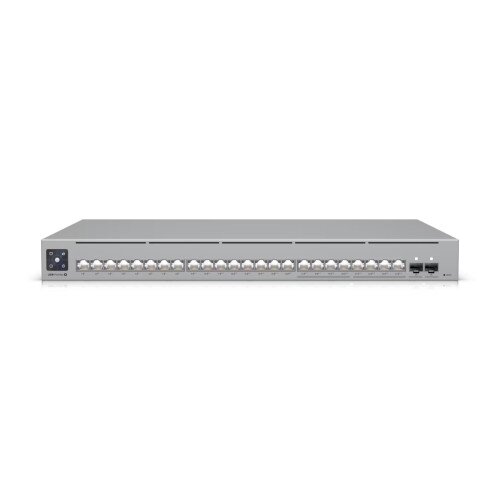

Ubiquiti Networks Pro Max 24 PoE 24-Port 2.5G / 1G PoE++ Network Switch
Ubiquiti Networks Pro Max 24 PoE 24-Port 2.5G / 1G PoE++ Network Switch Display Gallery Item 1
Ubiquiti Networks Pro Max 24 PoE 24-Port 2.5G / 1G PoE++ Network Switch - 2 Display Gallery Item 2
Ubiquiti Networks Pro Max 24 PoE 24-Port 2.5G / 1G PoE++ Network Switch - 3 Display Gallery Item 3
Ubiquiti Networks Pro Max 24 PoE 24-Port 2.5G / 1G PoE++ Network Switch - 4 Display Gallery Item 4
Ubiquiti Networks Pro Max 24 PoE 24-Port 2.5G / 1G PoE++ Network Switch - 5 Display Gallery Item 5

Discover Ubiquiti Networks Pro Max 24 PoE 24-Port 2.5G / 1G PoE++ Network Switch

By: Ubiquiti

Model: USW-Pro-Max-24-PoE (400W)

Sku: Z26T6HCSA2

Be the first to review this product

Sign up for price alert

$924.99

Availability: In Stock In Stock

New

  • Port Layout: 1 GbE RJ45: 16 (8 PoE+; 8 PoE++) (1G/100M/10M) 2.5 GbE RJ45: 8 (All PoE++), (2.5G/1G/100M/10M): 10G SFP+ 2
  • Max. PoE Output: Up to PoE++, Total PoE Availability: 400W, Redundancy: DC Power Backup
  • Layer 3: Yes, Form Factor: Rack mount (1U), Etherlighting: Yes
  • Switching Capacity: 112 Gbps, Total Non-Blocking Throughput: 56 Gbps
  • Forwarding Rate: 83 Mpps, Supported VLANs: 1,000, MAC Address Table Size: 16,000
  • L3 Table Size: ARP Entries: 6,000, Packet Buffer Size: 1.5 MB
  • DHCP Server (Local Networks): Yes DHCP Relay: Yes
  • LACP Port Aggregation: Yes, STP & RSTP: Yes, QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
  • IGMP Snooping: Yes, 802.1X Control: Yes, MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes, Egress Rate Limit: Yes, Flow Control: Yes, Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes MAC Address Blocking: Yes, IP-Based ACLs & Network Isolation: Yes, MAC-Based Port Restriction: Yes, Port Isolation: Yes,
  • Port Mirroring: Yes, Jumbo Frames: Yes, LLDP-MED: Yes, Voice VLAN: Yes, Loop Protection: Yes
  • PoE Ports PoE+: 8, PoE++: 16
  • Max. PoE Wattage per Port by PSE PoE: 15.4W, PoE+: 32W, PoE++: 64W
  • Max. Power Consumption: 50W (Excluding PoE Output) 450W (Including PoE Output)
  • Power Method (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
  • Power Input Method: AC input, Power Supply: AC/DC, internal, 550W, Supported Voltage Range: 100—240V AC
  • Management: Ethernet, AR Heat Dissipation (Excluding PoE Output): 170.6 BTU/hr
  • Enclosure Material: SGCC steel, Mount Material: SGCC steel, Supported Rack Depth: 400~1200 mm, (15.7-47.2")
  • LCM Display: 1.3" touchscreen: Ambient Operating Temperature, -5 to 40° C (23 to 104° F), Ambient Operating Humidity: 10 to 90% noncondensing
  • Etherlighting: Ethernet: Yes, SFP+: Yes, Certifications: CE, FCC, IC
  • NDAA Compliant: Yes
Quantity:
  • Add to Wishlist
  • Add to Compare
Style No
SKU Z26T6HCSA2
Brand Ubiquiti
Model USW-Pro-Max-24-PoE (400W)
Condition New
Weight (lbs.) 13.4500
Manufacturer's Warranty 1 Year Limited Warranty
