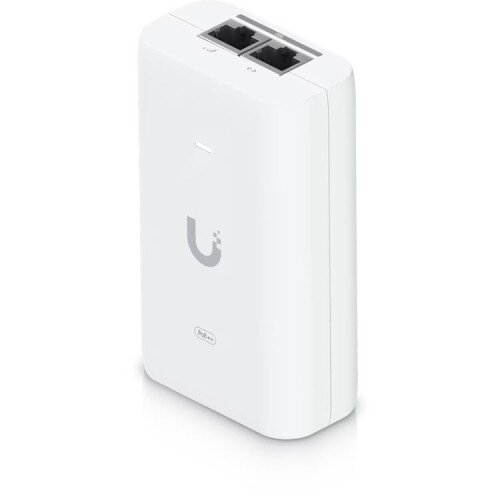

Ubiquiti PoE++ Adapter (60W) - 10G
Ubiquiti PoE++ Adapter (60W) - 10G Display Gallery Item 1
Ubiquiti PoE++ Adapter (60W) - 10G - 2 Display Gallery Item 2
Ubiquiti PoE++ Adapter (60W) - 10G - 3 Display Gallery Item 3

Ubiquiti PoE++ Adapter (60W) - 10G - Shop Now and Save!

By: Ubiquiti

Sku: 3XCXB0NNPR

Be the first to review this product

Sign up for price alert

$62.99

$74.99

$74.99

Availability: In Stock In Stock

New

  • Output Voltage: 54V DC at 1.12A
  • Rated Voltage: 100–240V AC at 50/60Hz
  • 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
  • AC Connector: IEC-320 C6
  • Clamping Protection: 11V Data, 60V power
  • Data In / PoE: RJ45 Shielded Socket
  • Input Current: 1.5A Max.
  • Inrush Current: (150A peak at 230V AC
  • Efficiency: (88%
  • Switching Frequency: 65 kHz
  • Output Ripple: 1% Max.
  • Line Regulation: ≤ 2%
  • Load Regulation: ≤ 5%
  • Max. PoE+ Wattage per Port by PSE: 60W
  • Max. Surge Discharge: 1500A (8/20 μs) power
  • Peak Pulse Current: 36A (10/1000 μs) data
  • Power Method: Universal AC input, 100–240V AC, 50/60 Hz
  • Power Supply: AC/DC
  • Response Time: (1 ns
  • Shunt Capacitance: (5 pF data
  • Supported Voltage Range: 100–240V AC
  • Surge Protection: Difference and common mode
  • Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
  • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
  • Ambient Operating Humidity: 10 to 95% noncondensing
  • Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
  • NDAA Compliant
  • Gigabit LAN Port
Quantity:
  • Add to Wishlist
  • Add to Compare

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

  • Delivers up to 60W of PoE++
  • Surge, peak pulse, and overcurrent protection
  • Contains RJ45 data input, AC cable with earth ground, and PoE++ output
  • LED indicator for status monitoring
  • Compatibility: E7, E7-Campus, E7-Campus-Indoor, E7-Audience, E7-Audience-Indoor, U7-Pro-XGS, U7-Pro-XG

In the Box

  • Ubiquiti PoE++ Adapter (60W)
  • Power Cable
