Ubiquiti UISP AirMAX PowerBeam AC Bridge - Shop Now and Save!

By: Ubiquiti

Sku: SHVAQSH37C

Be the first to review this product

Sign up for price alert

$271.99

$343.99

$271.99

Availability: In Stock In Stock

New

  • Enclosure material: UV-stabilized plastic
  • Mounting: Pole mount kit
  • Wind loading: 264.6 N at 96 km/h (60 lbf at 60 mph)
  • Wind survivability: 96 km/h (60 mph)
  • Networking interface: (1) 10/100/1000 MbE port
  • Power method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Power supply: 24V, 0.5A Gigabit PoE
  • Max. power consumption: 8.5W
  • Supported voltage range: 20-26V DC
  • ESD/EMP protection Air/contact: ± 24 kV
  • LEDs: (1) Power, (1) LAN, (4) WLAN
  • Signal strength LEDs: Software-adjustable to correspond to custom RSSI levels
  • RoHS compliance: Yes
  • Salt fog test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5
  • Vibration test: IEC 68-2-6
  • Temperature shock test: IEC 68-2-14
  • UV test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
  • Wind-driven rain test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5
  • Operating temperature: -40 to 70° C (-40 to 158° F)
  • Operating humidity: 5 to 95% noncondensing
  • Certifications: FCC, IC, CE
  • Gain: 27 dBi
  • Max. VSWR: 1.5:1
  • Polarization: Dual linear
  • Worldwide: 5150 - 5875 MHz
Quantity:
  • Add to Wishlist
  • Add to Compare

5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.

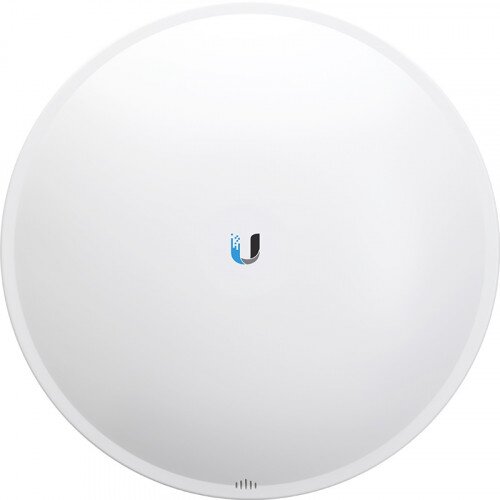

High-Performance airMAX ac Bridge Incorporating a dish reflector design with proprietary airMAX ac technology, the PowerBeam ac is ideal for CPE deployments requiring maximum performance.

Features:

  • Highly Efficient Antenna Beam Performance
  • Custom Ubiquiti airMAX ac Processor
  • Up to 450+ Mbps Real TCP/IP Throughput
  • Innovative Snap and Lock Assembly
  • Proprietary InnerFeed Technology

In the Box

  • Reflector
  • Radome
  • Antenna Feed
  • Rear Housing
  • Mounting Bracket
  • Adjustment Bracke
  • Hex Bolts with Washers (Qty. 4)
  • Pole Clamp (Qty. 2)
  • Carriage Bolts (Qty. 4)
  • Flange Nuts (Qty. 4)
  • Screws with Washers (Qty. 4)
  • Washers (Qty. 4)
  • Nylon Insert Lock Nuts (Qty. 4)
  • Gigabit PoE (24V, 0.5A) with Mounting Bracket
  • Power Cord
  • Quick Start Guide
