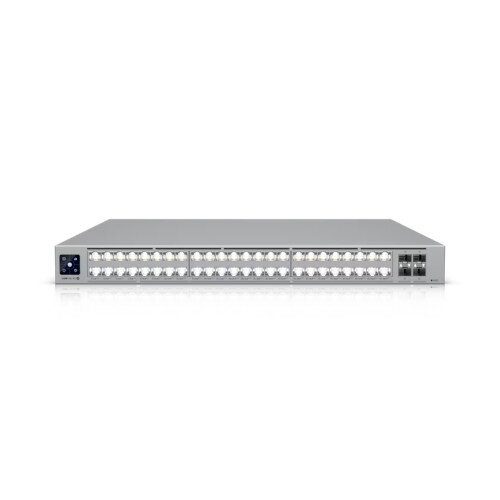

Ubiquiti Pro XG 48 48-Port 2.5G / 10G PoE 4 Compliant Managed Network Switch
Ubiquiti Pro XG 48 48-Port 2.5G / 10G PoE 4 Compliant Managed Network Switch Display Gallery Item 1
Ubiquiti Pro XG 48 48-Port 2.5G / 10G PoE 4 Compliant Managed Network Switch - 2 Display Gallery Item 2
Ubiquiti Pro XG 48 48-Port 2.5G / 10G PoE 4 Compliant Managed Network Switch - 3 Display Gallery Item 3
Ubiquiti Pro XG 48 48-Port 2.5G / 10G PoE 4 Compliant Managed Network Switch - 4 Display Gallery Item 4
Ubiquiti Pro XG 48 48-Port 2.5G / 10G PoE 4 Compliant Managed Network Switch - 5 Display Gallery Item 5
Ubiquiti Pro XG 48 48-Port 2.5G / 10G PoE 4 Compliant Managed Network Switch - 6 Display Gallery Item 6

Discover Ubiquiti Pro XG 48 48-Port 2.5G / 10G PoE 4 Compliant Managed Network Switch

By: Ubiquiti

Model: USW-Pro-XG-48-PoE (1080W)

Sku: 59LKCU5V15

Be the first to review this product

Sign up for price alert

$2,874.99

Availability: In Stock In Stock

New

  • Port Layout: 2.5 GbE RJ45: 16 (All PoE+++), (2.5G/1G/100M/10M), 10 GbE RJ45: 32 (All PoE+++), (10G/5G/2.5G/1G/100M/10M), 25G SFP28L 4 (25G/10G/1G)
  • Max. PoE Output: Up to PoE+++ Total PoE Availability: 200-240V AC: 1080W, 100-120V AC: 972W, Redundancy: DC Power Backup
  • Layer 3: Yes, Form Factor: Rack mount (1U), Etherlighting: Yes
  • Switching Capacity: 920 Gbps, Total Non-Blocking Throughput: 460 Gbps, Forwarding Rate: 684 Mpps
  • Supported VLANs: 1,000, MAC Address Table Size: 128,000
  • L3 Table Size: ARP Entries: 128,000, IPv4 Routes: 256,000
  • Packet Buffer Size: 8 MB
  • Access Lists: IPv4: 256, MAC: 256
  • DHCP Server (Local Networks): Yes, DHCP Relay: Yes, Inter-VLAN Routing (Local Networks): Yes, Static Routing (Local Networks): Yes
  • LACP Port Aggregation: Yes, STP & RSTP: Yes, QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes, Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes, IGMP Snooping: Yes, 802.1X Control: Yes
  • MAC-Based ACLs & Device Isolation: Yes, DHCP Snooping & Guarding: Yes, Egress Rate Limit: Yes , Flow Control: Yes
  • Storm Control: Yes, Multicast & Broadcast Rate Limiting: Yes, MAC Address Blocking: Yes, IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes, Port Isolation: Yes, Port Mirroring: Yes, Jumbo Frames: Yes
  • LLDP-MED: Yes, Voice VLAN: Yes, Loop Protection: Yes
  • PoE Ports PoE+++: 48
  • Max. PoE Wattage per Port by PSE: PoE: 15.4W, PoE+: 30W, PoE++: 60W, PoE+++: 90W
  • Max. Power Consumption: 200W (Excluding PoE Output), 200-240V: 1,280W / , 100-120V AC: 1,172W (Including PoE Output), Power Method: (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
  • Power Input Method: AC input, Power Supply: AC/DC, internal, 1,350W, Supported Voltage Range: 100—240V AC, Management: Ethernet AR
  • Enclosure Material: SGCC steel, Mount Material: SGCC steel, Supported Rack Depth: 482.6 mm (19") four-post racks, Posts depths ranging from 600 to 1,066 mm (23.6-42”)
  • LCM Display: 1.3" touchscreen, ESD/EMP Protection: Air: 30kV, contact: 20kV, Ambient Operating Temperature: -5 to 40° C (23 to 104° F), Ambient Operating Humidity: 10 to 90% noncondensing
  • Etherlighting: Ethernet: Yes, SFP28: Yes
  • LEDs: RPS: Yes
  • NDAA Compliant: Yes, Certifications: CE, FCC, IC
  • Application Requirements: UniFi Network: Version 9.1.120 and later
Quantity:
  • Add to Wishlist
  • Add to Compare
Style No
SKU 59LKCU5V15
Brand Ubiquiti
Model USW-Pro-XG-48-PoE (1080W)
Condition New
Weight (lbs.) 31.3950
Manufacturer's Warranty 1 Year Limited Warranty
